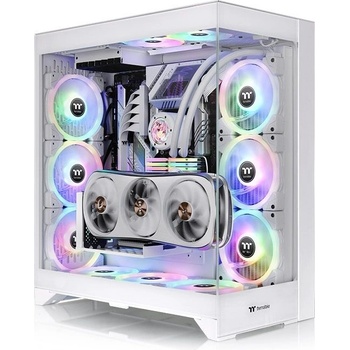

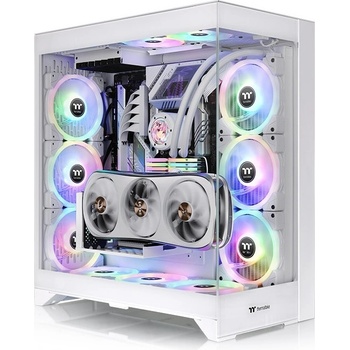

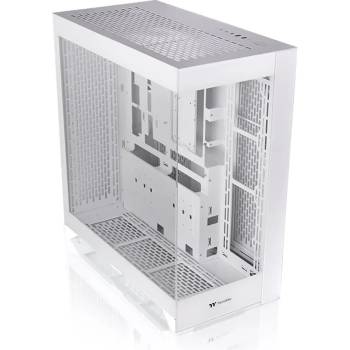

Thermaltake CTE E660 MX White (CA-1Y3-00M6WN-01)

Thermaltake CTE E660 MX Snow



The CTE E660 MX Snow is a dual chamber mid-tower chassis that supports the latest Hidden-Connector motherboards, additionally it features a three-way GPU installation option and comes with an interchangeable dual front panel design that gives users maximum flexibility to customize their setup.



Compatible with Hidden-Connector Motherboards

Created for next-generation Hidden-Connector motherboards, the CTE E660 MX Snow features a special design that enables support for both standard motherboards and hidden-connector motherboards.





Dual Interchangeable Front Panels

With a 4mm tempered glass panel pre-installed on the left side, users can easily show off their interior configuration; on top of that, the CTE E660 MX Snow offers two interchangeable front panels: a tempered glass panel and a perforated panel. The former for a great look and the latter for better airflow. Users have the flexibility to display their PC build the way they want.





Designe d by Thermaltake

The CTE Form Factor Designed by Thermaltake, stands for Centralized Thermal Efficiency, and is focused around providing high level thermal performance to critical components. The design utilizes a 90-degree rotation of the motherboard providing more efficient airflow pathways.

Since the CPU location has been moved much closer to the front panel and the graphics card moved closer towards the rear panel, independent cold air induction is given for thermal dissipation of the CPU and graphics card respectively. This overall approach has allowed CTE to provide better and more efficient intake airflow through the placement of main components and cooling, as well as optimization to heat extraction from the system.





Series CTECASE TYPE Mid TowerDimension (H x W x D) 558.5 x 270 x 513mm
(21.99 x 10.63 x 20.2 inch)
 NET WEIGHT 15.85 kg / 34.94 lbs. PANEL 4mm Tempered Glass x 2Color WhiteMATERIAL SPCCDrive Bays 3 x 3.5, 1 x 2.5 or 2 x 3.5, 2 x 2.5EXPANSION SLOTS 7MOTHERBOARDS 6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX),
12 x 9.6 (ATX), 12 x 10.5 (E-ATX)
 I/O Port USB 3.0 x 2, Type-c x1, HD Audio x 1PSU Standard PS2 PSU (optional)FAN SUPPORT Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm , 2x 140mm, 1 x 140mm
Top:
2 x 120mm, 1 x 120mm
Right (M/B Side):
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm , 2x 140mm, 1 x 140mm
Rear:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm , 2x 140mm, 1 x 140mm
Bottom:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm , 2x 140mm, 1 x 140mm
 RADIATOR SUPPORT Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
Top:
1 x 240mm, 1 x 120mm
Right (M/B Side):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
Rear:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
Bottom (DIY only):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
 CLEARANCE CPU cooler max height:
166mm
VGA max length:
415mm (with radiator)
443.8mm (without radiator)
PSU max length:
220mm
