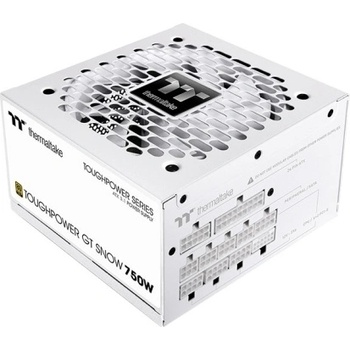

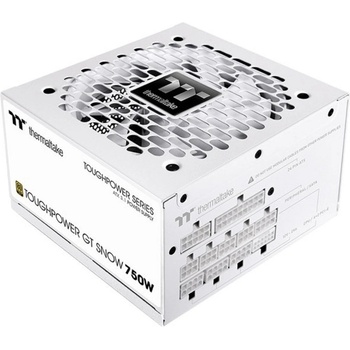

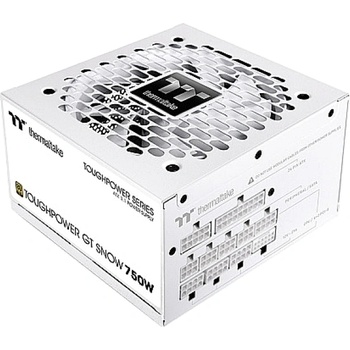

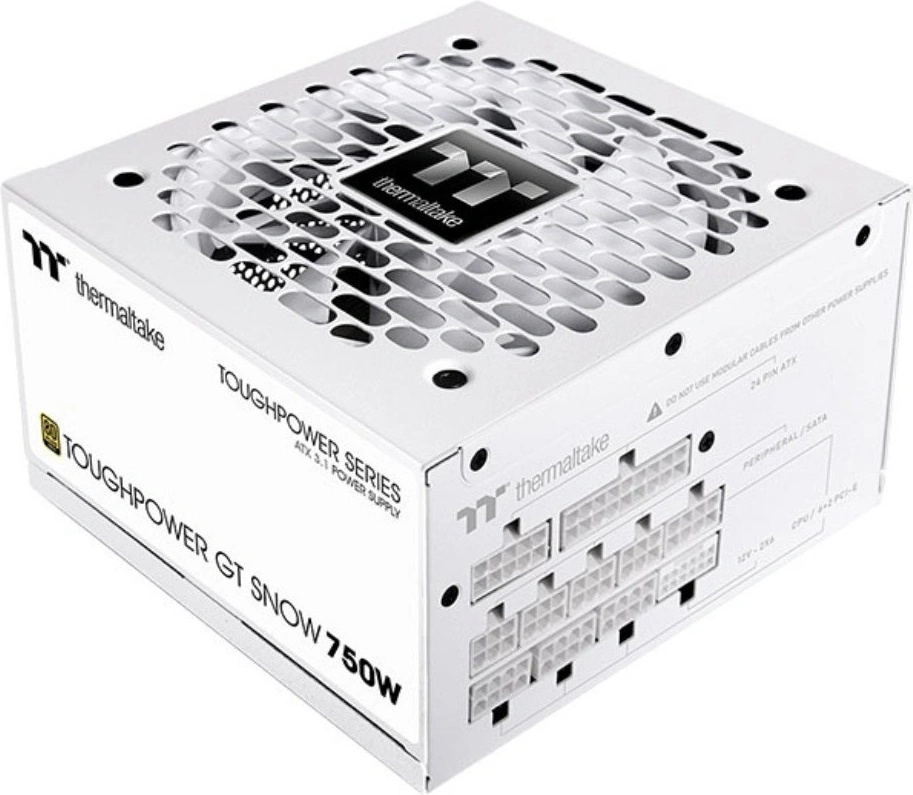

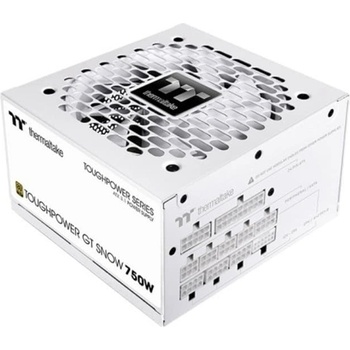

Thermaltake PS-TPT-0750FNFAGE-W

TOUGHPOWER GT 750W Snow

80 PLUS Gold certified, fully modular PSU, compatible with ATX 3.1 specifications, and equipped with a native 12V-2x6 connector.





Ultra Quiet 120mm Hydraulic Bearing Fan with Smart Zero Fan

Featuring an 120mm Hydraulic Bearing Fan to keep friction at really low level. Designed with our Smart Zero Fan to adjust the fan speed and minimizes undesired noise.





High Amperage Single +12V Rail & High-Class Technologies

Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.



AC INPUT Input Voltage: 100 - 240V~
Input Current: 10A Max.
Frequency: 50Hz-60HzDC OUTPUT +3.3V +5V +12V -12V +5VSBMax Output Current 20A 20A 62.5A 0.3A 3AMax Output Power 100W 750W 3.6W 15WTotal Power 750W



Max. Output Capacity 750WColor SnowDimension ( W / H / D ) 150mm(W)x86mm(H)x140mm(D)PFC (Power Factor Correction) Active PFC
 Power Good Signal 100-250 msec
 Hold Up Time > 17msec at 80% load
 Input Current 10A Max. Input Frequency Range 50Hz-60HzInput Voltage 100-240V～Operating Temperature 0°C to + 40°COperating Humidity 5% to 85%, non-condensingStorage Temperature -40°C to + 70°CStorage Humidity 5% to 95%, non-condensingSISTEMA DE REFRIGERACIÓN 12cm Hydraulic bearing fan
 Efficiency Meet 80 PLUS® Gold at 115Vac input.
 MTBF 100,000 hrs minimum
 Safety Approval CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/B SMI/CCC/BIS/S-MARK
 PCI-E 6+2pin 4PCIe 12+4pin 1(600W)Protection OVP/UVP/OCP/OPP/OTP/SCP
