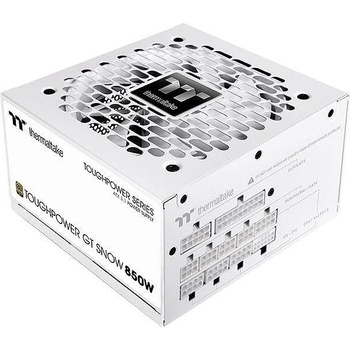

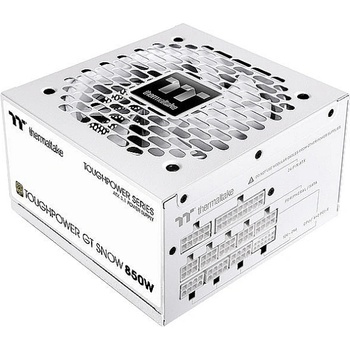

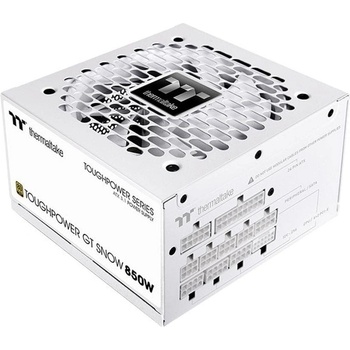

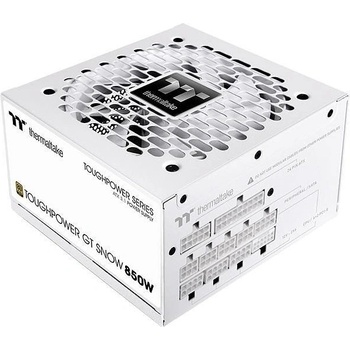

Thermaltake PS-TPT-0850FNFAGE-W

TOUGHPOWER GT Snow 850W



80 PLUS Gold certified, fully modular PSU, compatible with ATX 3.1 specifications, and equipped with a native 12V-2x6 connector.



Toughpower GT Snow Series

The fully modular Toughpower GT Snow series is designed to deliver 80 PLUS Gold efficiency and is compatible with ATX 3.1 standards. Its native PCIe 12V-2x6 (12+4 pin) modular interface efficiently powers PCIe 12+4 pin graphics cards. Backed by an extensive 5-year warranty, the Toughpower GT Snow series meets the needs of value-oriented users seeking a new power supply with reliable performance.







Ultra Quiet 120mm Hydraulic Bearing Fan with Smart Zero Fan

Featuring an 120mm Hydraulic Bearing Fan to keep friction at really low level. Designed with our Smart Zero Fan to adjust the fan speed and minimizes undesired noise.





High Amperage Single +12V Rail & High-Class Technologies

Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.



AC INPUT Input Voltage: 100 - 240V~
Input Current: 10A Max.
Frequency: 50Hz-60HzDC OUTPUT +3.3V +5V +12V -12V +5VSBMax Output Current 20A 20A 70.8A 0.3A 3AMax Output Power 100W 849.6W 3.6W 15WTotal Power 850W





watts 850WMax. Output Capacity 850WColor SnowDimension ( W / H / D ) 150mm(W)x86mm(H)x140mm(D)PFC (Power Factor Correction) Active PFCPower Good Signal 100-250 msecHold Up Time > 17msec at 80% loadInput Current 10A Max. Input Frequency Range 50Hz-60HzInput Voltage 100-240V～Operating Temperature 0°C to + 40°COperating Humidity 5% to 85%, non-condensingStorage Temperature -40°C to + 70°CStorage Humidity 5% to 95%, non-condensingSISTEMA DE REFRIGERACIÓN 12cm Hydraulic bearing fanEfficiency Meet 80 PLUS® Gold at 115Vac input. MTBF 100,000 hrs minimumSafety Approval CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/B SMI/CCC/BIS/S-MARKPCI-E 6+2pin 4PCIe 12+4pin 1(600W)Protection OVP/UVP/OCP/OPP/OTP/SCP
