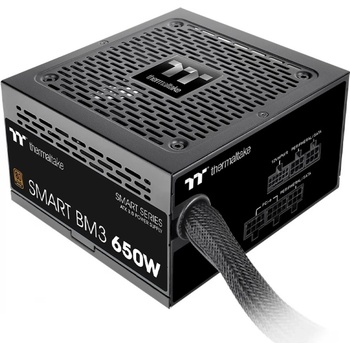

Thermaltake Smart BM3 650W 80 PLUS Bronze (PS-SPD-0650MNFABE-3)



Thermaltake Smart BM3 650W





80 PLUS Bronze certified semi modular PSU, compatible with Intel’s ATX 3.0 specifications. Designed with a native PCIe Gen 5.0 connector, it can power up next-gen entry level GPUs with one 12VHPWR cable.





Fully Compatible with Intel ATX 3.0 Standards

Smart BM3 series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.





PCIe Gen 5.0 Ready

Smart BM3 Bronze series comes with a 16-pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.
The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline)
The native 16-pin (12VHPWR) PCIe connector of the Smart BM3 850W can deliver up to 450W for PCIe 5.0 graphics cards.







Specs:

Max. Output Capacity 650WColor BlackDimension ( W / H / D ) 150mm(W)x86mm(H)x140mm(D)
 PFC (Power Factor Correction) Active PFC
 Power Good Signal 100-150 msec
 Hold Up Time > 17msec
 Input Current 15A-6A
 Input Frequency Range 50Hz/60HzInput Voltage 100-240V～
 Operating Temperature 5°C to + 45°C
 Operating Humidity 20% to 85%, non-condensing
 Storage Temperature -40°C to + 55°C
 Storage Humidity 10% to 95%, non-condensing
 Cooling System 12cm FDB Fan
 Efficiency 80 PLUS Bronze at 115Vac input.
 MTBF 100,000 hrs minimum
 Safety Approval CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/ BSMI/CCC
 PCI-E 6+2pin 4PCIe 12+4pin 1(300w)Protection OCP/OVP/UVP/OPP/OTP/SCP
