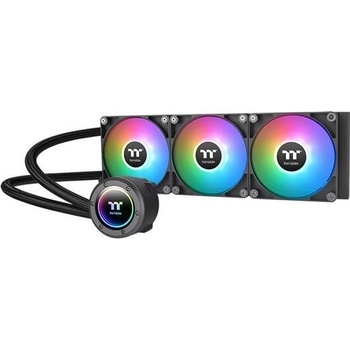

Thermaltake TH360 ARGB Sync AIO (CL-W362-PL12SW-A)



Thermaltake TH360 V2 ARGB Sync







No matter the build, We’ve got you covered

The TH V2 ARGB Series is now ready for all types of builds; the series has three 120mm fan models, including the TH 120/ 240/ 360 V2 ARGB, and two 140mm fan models, including TH 280/ 420 V2 ARGB.











New Version, New Design

TH V2 ARGB was given an industrial look to freshen up the 360-degree rotational cap. Adding Infinity Mirror Lighting to this series can bring more diverse visual effects to the build and gives more depth than it looks.











Sync with CT140 ARGB Fans

Developed from the CT fan series, this model uses three CT140 ARGB fans with enhanced fan speed, and you can also match with some of our chassis’ pre-installed fans to unify your fans in your build!

These fans have 1800 RPM and provide an 84.32 CFM airflow with 3.02 mm-H2O static pressure while maintaining 34.7 dB-A noise levels.













Keep it COLD with Copper

The high-performance copper base plate accelerates heat conductivity. The high-quality and reliable pump enables maximum water circulation, keeping the copper plate continuously cool. The low evaporation tube effectively decreases the loss of coolant; therefore, no refill is required.











Any CPU Can Be the Right CPU

The package includes brackets for the latest Intel and AMD CPU sockets to be compatible with the most modern CPU platforms, including the latest Intel LGA1700 and AMD AM5 CPUs.

Compatibility list:
Intel: LGA 2066/2011/1700/1200/1156/1155/1151/1150
AMD: AM5/AM4/AM3+/AM3/AM2+/AM2









Specs:

PU MP Speed : PWM 1500~3300 R. P. M
Rated Voltage : 12 V & 5V
Rated Current : 0.43 A & 0.32 A
Power Input : 5.16 W & 1.6 W
Connector : 2510–4 Pin / 5V ARGB header–3 PinWATER BLOCK Material : CopperFan Dimension : 120 x 120 x 25 mm
Speed : PWM 500~2000 R. P. M
Noise Level : 25.8 dB-A
Rated Voltage : 12 V & 5V
Rated Current : 0.11 A & 0.31 A (one fan)
Power Input : 1.32 W & 1.55 W (one fan)
Max. Air Flow : 57.05 CFM
Max. Static Pressure : 2.23 mm-H2O
Connector : 2510 - 4 Pin PWM , 5V ARGB header - 3 Pin
Bearing Type : Hydraulic Bearing
Life expectation : 40,000 hrs, 25℃Tube Length : 460 mm
Material : RubberRadiator Dimension : 396 x 120 x 27 mm
Material : AluminumCOMPATIBILITY Intel LGA 2066/2011/1700/1200/1156/1155/1151/1150
AMD AM5/AM4/AM3+/AM3/AM2+/AM2
