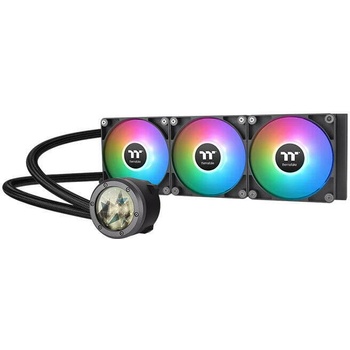

Thermaltake TH360 Ultra ARGB Sync AIO (CL-W384-PL12SW-A)



Thermaltake TH360 V2 Ultra ARGB Sync





No matter the build, We’ve got you covered

The TH V2 Ultra ARGB Series covers various types of builds; the series has two 120mm fan models, including the TH 240/ 360 V2 Ultra ARGB, and two 140mm fan models, including TH 280/ 420 V2 Ultra ARGB.











New Design, Same Quality

TH V2 Ultra ARGB was given an industrial look to freshen up the 2.1 LCD Display. With its 480*480 high resolution, you can easily show off 16.8M color videos or photos.











Personalize Your LCD Display

The TH V2 Ultra LCD Display is highly customizable, from presenting real-time information to playing JPG, GIF, PNG, MP4, MOV, and AVI files or even showing local time and weather information on the display; it can all bring great visual aesthetics to your build.











Sync with CT140 ARGB Fans

Developed from the CT fan series, this model uses three CT140 ARGB fans with enhanced fan speed, and you can also match with some of our chassis’ pre-installed fans to unify your fans in your build!
These fans have 1800 RPM and provide an 84.32 CFM airflow with 3.02 mm-H2O static pressure while maintaining 34.7 dB-A noise levels.











Keep it COLD with Copper

The high-performance copper base plate accelerates heat conductivity. The high-quality and reliable pump enables maximum water circulation, keeping the copper plate continuously cool. The low evaporation tube effectively decreases the loss of coolant; therefore, no refill is required.











Any CPU Can Be the Right CPU

The package includes brackets for the latest Intel and AMD CPU sockets to be compatible with the most modern CPU platforms, including the latest Intel LGA1700 and AMD AM5 CPUs.

Compatibility list:
Intel: LGA 1700, 1200, 115X, 2066, 2011
AMD: AM5, AM4, AM3, AM2







Specs:

Pump Motor Speed : PWM 1500~3300 RPM
Rated Voltage : 12V
Rated Current : 0.43A
Power Input : 5.16WCPU Display Rated Voltage : 5V
Power Input : 1.15W
Display Type : 2.1TFT-LCD
Display Resolution : 480x480 (RGB) pxDisplay Support Interface : Micro USB to USB (9PIN)
System Compatibility : Windows 10 / 11Water Block Material : CopperFan Dimension : 120 x 120 x 25 mm
Speed : PWM 500~2000 R. P. M
Rated Voltage : 12V/5V
Rated Current : 0.11A & 0.31A (one fan)
Power Input : 1.32W & 1.55W (one fan)
Air Flow. : 57.05cm CFM (one fan)
Static Pressure. : 2.23mm-H2O (one fan)
Noise Level. : 25.8dB-ATube Length : 460mm
Material : RubberRadiator Dimension : 396 x 120 x 27 mm
Material : AluminumCompatibility CPU Socket
Intel LGA 2066/2011-3/2011/1700/1200/1156/1155/115 1/1150
AMD AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1
