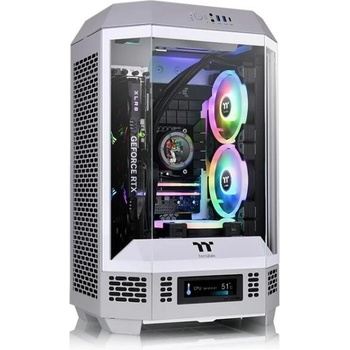

Thermaltake The Tower 300 Limestone (CA-1Y4-00SIWN-00)

Thermaltake Tower 300



Classic Vertical Body Design

The Tower series has been iconic for its vertical body designs and The Tower 300 Limestone follows in those footsteps. However, with its new octagonal prism design we were able to not only increase the viewing areas for the components inside but also allow for better airflow and bigger cooling options too. This gives The Tower 300 Limestone the classic looks of its predecessors but with even better performance and updated styling.



A Unique View

Our optional Horizontal Chassis Stand Kit comes not only with the stand itself but also included is a replacement bottom cover to delete the feet and provide a clean look.



Tool Free Panels for Easy Access

The Tower 300 Limestone features three 3mm tempered glass panels on the front and two perforated panels on each side. All are easily removable without tools.



Two CT140 PC Cooling Fans Pre-installed

The Tower 300 Limestone features two 140mm PWM fans on the top to provide good cooling performance.



Personalize Your LCD Display

Through the TT RGB Plus 2.0, the 3.9'' LCD display presents real-time information and plays JPG and GIF files with 128*480 resolution. What’s more is users can even show the time and weather information on the display, bringing great visual aesthetics and highly customizable functions to your Tower 300 chassis.

GIFs

Real-Time Information

Time

Weather



Intake and Exhaust

Classic to the vertical body design The Tower 300 Limestone does well when it comes to staying cool. With dedicated intakes positioned to bring in cold fresh air and exhausts set up to vent the air the chassis has already processed providing optimal temperatures at all times.



Specifications



Case Type Micro TowerDimensions 551 x 342 x 281 mm
(22.5 x 14 x 11.5 inch)Weight 8.3 kg / 18.3 lbs. Side Panel 3mm Tempered Glass x 3Color LimestoneMaterial SPCCCooling System Top(exhaust):
140 x 140 x 25 mm CT140 fan (1500rpm, 30.5 dBA) x 2Expansion Slots 4Motherboard 6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX)I/O Port USB 3.2 (Gen 2) Type-C x 1PSU Standard PS2 PSU (optional)Fan Support Top:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Right Side:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
Rear:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Power Cover:
1 x 120mm
1 x 140mmRadiator Support Right Side(AIO):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mmClearance CPU cooler height limitation:
210mm
VGA length limitation:
280mm(With power cover)
400mm(Without power cover)
PSU length limitation:
220mm
