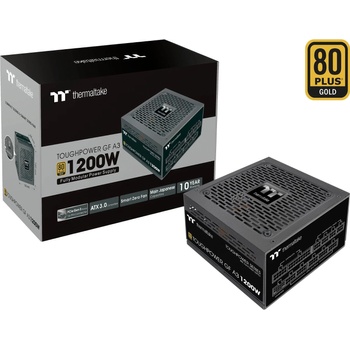

Thermaltake Toughpower GF A3 80 PLUS Gold 1200W (PS-TPD-1200FNFAGE-H)



Thermaltake Toughpower GF A3 1200W







Toughp ower GF A3 series is 80 PLUS Gold certified and compatible with Intel’s ATX 3.0 specifications. Designed with a native PCIe Gen 5.0 connector, it can power up next-gen technology with one new 12VHPWR cable.

The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline)
The native 16 PIN (12VHPWR) PCIe connector of the GF A3 1050W can deliver up to 600W for PCIe 5.0 graphics cards.











Power Up the Next Generation Hardware

To fully support next-gen hardware, Toughpower GF A3 Gold Series (650W/750W/850W/1050W/1200W) is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector. The GF A3 Gold series delivers 80 PLUS Gold efficiency, it also offers stability, durability, and reliability.











Fully Compatible with Intel ATX 3.0 Standards

Toughpower GF A3 Gold series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.











PCIe Gen 5.0 Ready

Toughpower GF A3 Gold series comes with a 16pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline)
The native 16 PIN (12VHPWR) PCIe connector of the GF A3 1050W can deliver up to 600W for PCIe 5.0 graphics cards.











Made to Comply with the Latest Graphics Cards

As the power consumption of graphics cards increase, so has their demand for power. The GF A3 series is designed to support NVIDIA and AMD graphics cards, and are ready to supply the graphics cards according to their different connections.









Be Smart, Stay Quiet

Featuring a 120mm fluid bearing fan to deliver excellent airflow. Furthermore, the Smart Zero Fan will not spin until the load exceeds 30% of the power supply, minimizing undesired noise.









Specs:

Max. Output Capacity 1200WColor BlackDimension ( W / H / D ) 150mm(W)x86mm(H)x140mm(D)PFC (Power Factor Correction) Active PFCPower Good Signal 100-250 msecHold Up Time > 17msecInput Current 15A Max. Input Frequency Range 50Hz - 60HzInput Voltage 100 - 240VacOperating Temperature 0°C to + 45°COperating Humidity 5% to 85%, non-condensingStorage Temperature -40°C to + 70°CStorage Humidity 5% to 95%, non-condensingCooling System 12cm FDB FanEfficiency 80 PLUS Gold at 115Vac input. MTBF 100,000 hrs minimumSafety Approval CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/B SMIPCI-E 6+2pin 5PCIe 12+4pin 1(600W)
