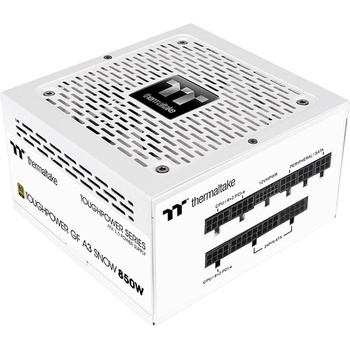

Thermaltake Toughpower GF A3 Snow 850W TT Premium Edition 80 PLUS Gold (PS-TPD-0850FNFAGE-N)



Thermaltake Toughpower GF A3 Snow 850W







Power Up the Next Generation Hardware

To fully support next-gen hardware, Toughpower GF A3 Snow Series (850W/1050W) is designed to meet ATX 3.0 standards, including a PCIe Gen 5.0 12VHPWR connector. The GF A3 Gold series delivers 80 PLUS Gold efficiency, it also offers stability, durability, and reliability. For users who crave for a pure white build, this power supply can definitely meet their demands.











Fully Compatible with Intel ATX 3.0 Standards

Toughpower GF A3 Snow Gold series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.













PCIe Gen 5.0 Ready

Toughpower GF A3 Snow series comes with a 12+4pin connector to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 12+4pin (12VHPWR) PCIe connector of the GF A3 Snow 850W can deliver up to 450W for PCIe 5.0 graphics cards.













Be Smart, Stay Quiet

Features a 120mm fluid bearing fan to deliver excellent airflow. Furthermore, the Smart Zero Fan will the fan will not spin until the load exceeds 30% of the power supply, minimizing undesired noise.







Specs:

Max. Output Capacity 850WColor WhiteDimension ( W / H / D ) 150mm(W)x86mm(H)x140mm(D)PFC (Power Factor Correction) Active PFCPower Good Signal 100-150 msec
 Hold Up Time > 17msecInput Frequency Range 50Hz/60HzInput Voltage 100 - 240VacOperating Temperature 5°C to + 45°COperating Humidity 20% to 85%, non-condensingStorage Temperature -40°C to + 55°C
 Storage Humidity 10% to 95%, non-condensingCooling System 12cm FDB FanEfficiency 80 PLUS Gold at 115Vac input. MTBF 100,000 hrs minimumSafety Approval CE/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/ CCC/EAC
 PCI-E 6+2pin 4PCIe 12+4pin 1(450W)Input current 15A-8A
