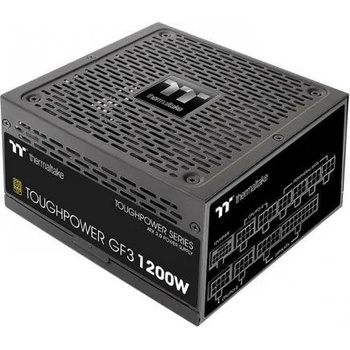

Thermaltake Toughpower GF3 1200W 80 PLUS Gold (PS-TPD-1200FNFAGE-4)



Thermaltake Toughpower GF3 1200W





Designed with a native PCIe 12+4pin connector, the Toughpower GF3 series is compatible with Intel ‘s ATX 3.0 specification and is built for next-gen PCIe 5.0 graphics cards.

The wattage marked on 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connector of GF3 1200W can deliver up to 600W for PCIe 5.0 graphics cards.





Toughpower GF3 1200W Gold - TT Premium Edition

PCIe Gen 5.0 Ready! Designed with a native PCIe 12+4pin modular connector, the Toughpower GF3 series is built for the next-gen PCIe 5.0 graphics cards and is compatible with Intel ATX 3.0 specifications. The fully modular Toughpower GF3 series comes in 1650W, 1350W, 1200W, 1000W, 850W and 750W and is built to deliver 80 PLUS Gold efficiency. Aimed at providing the best performance, the Toughpower GF3 1200W includes all the critical features such as < 30mV low ripple noise design, extremely strict voltage regulation < ±2%, hold up time> 17 milliseconds, and comes with 100% high quality Japanese capacitors and other premium components to help deliver continuous and stable power.









Fully Compatible With Intel PSDG ATX 3.0 Specifications

Toughpower GF3 series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards. The GF3 series can sustain up to 3x GPU power excursion and 2x total power excursion.









Made to Comply with the Latest Graphics Cards

As the power consumption of graphics cards has increased, so has their demand for power. The GF3 series is designed to support NVIDIA and AMD graphics cards, ready to supply the graphics card according to their different ways of connections.









PCIe Gen 5.0 Ready

Toughpower GF3 1200W Gold comes with 16pin connectors to offer powerful and stable performance allowing the PSU to run next-generation GPUs naturally.









Specs:

Max. Output Capacity 1200WColor Black
 Dimension ( W / H / D ) 150mm(W) x 86mm(H) x 160mm(D)Peso 1.88 KGPFC (Power Factor Correction) Active PFCPower Good Signal 100-150 msecHold Up Time > 17msec at 100% of full loadInput Current 15.0A / 7.0AInput Frequency Range 50/60HzInput Voltage 100V – 240V~Operating Temperature 0°C to + 40°COperating Humidity 20% to 90%, non-condensingStorage Temperature -20°C to + 70°CStorage Humidity 5% to 95%, non-condensingCooling system 13.5cm fluid bearing fanEfficiency 80 PLUS Gold at 115Vac input. MTBF 100,000 hrs minimumSafety Approval CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/C CCPCI-E 6+2pin PCIe 6+2pin X 4
PCIe 12+4pin X 1Protection OCP, OVP, UVP, OPP, SCP, OTP
