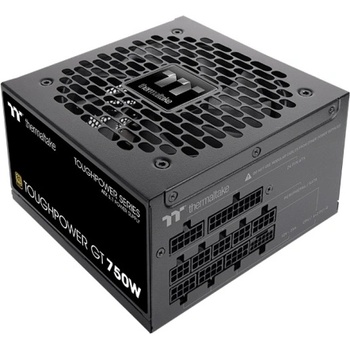

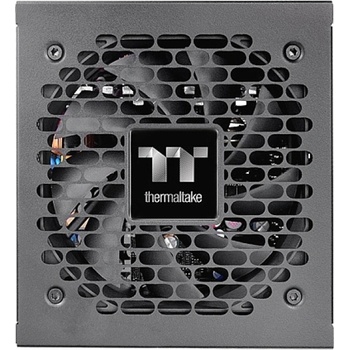

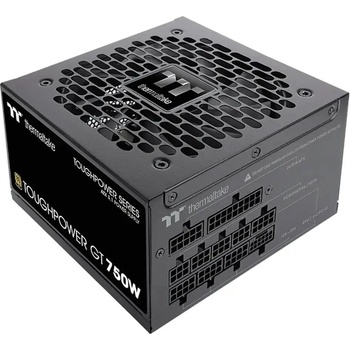

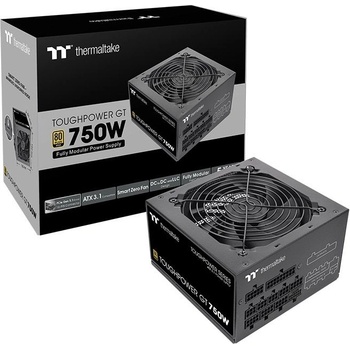

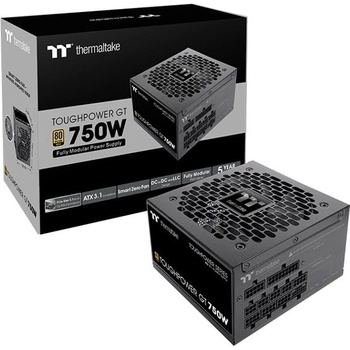

Thermaltake Toughpower GT 750W 80 PLUS Gold (PS-TPT-0750FNFAGE-3)

TOUGHPOWER GT 750W

80 PLUS Gold certified, fully modular PSU, compatible with ATX 3.1 specifications, and equipped with a native 12V-2x6 connector.

Please note that the Toughpower GT 750W comes in two authentic versions (Version A and Version B).



High Amperage Single +12V Rail & High-Class Technologies

Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of LLC and DC to DC circuit design provides very stable operation and enhanced voltage regulation.

AC INPUT Input Voltage: 100 - 240V~
Input Current: 10A Max.
Frequency: 50Hz-60HzDC OUTPUT +3.3V +5V +12V -12V +5VSBMax Output Current 20A 20A 62.5A 0.3A 3AMax Output Power 100W 750W 3.6W 15WTotal Power 750W





watts 750WModel TPD-750AH2FXG-3Max. Output Capacity 750WColor BlackDimension ( W / H / D ) 150mm(W)x86mm(H)x140mm(D)PFC (Power Factor Correction) Active PFC
 Power Good Signal 100-250 msecHold Up Time > 17msec at 80% loadInput Current 10A Max.
 Input Frequency Range 50Hz-60HzInput Voltage 100-240V～OPERATING TEMPERATURE 0°C to + 40°COperating Humidity 5% to 85%, non-condensingStorage Temperature -40°C to + 70°CStorage Humidity 5% to 95%, non-condensingCOOLING SYSTEM 12cm Hydraulic bearing fanEfficiency Meet 80 PLUS® Gold at 115Vac input. MTBF 100,000 hrs minimumSafety Approval CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/B SMI/CCC/BIS/S-MARK
 PCI-E 6+2pin 4PCIe 12+4pin 1PROTECTION OVP/UVP/OCP/OPP/OTP/SCP
