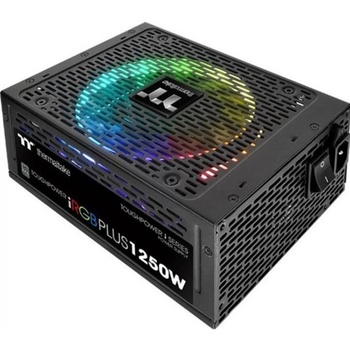

Thermaltake Toughpower iRGB Plus 1250W 80 PLUS Titanium (PS-TPI-1250F3FDTE-1)



Thermaltake Toughpower iRGB PLUS 1250W









80 PLUS Titanium certified and fully compatible with Intel’s ATX 3.0 specifications. Designed with two native PCIe Gen 5.0 connector, it can power up latest GPU with the 12VHPWR cable. iRGB PLUS PSU comes with 16.8million-color, 18-LED RGB fan, can be controlled by software system to make power management smarter.









The Future of Digitalization

Toughpower iRGB PLUS Titanium Series (1650W/1250W) is designed to meet Intel ATX 3.0 specifications, 1650W comes with two PCIe Gen 5.0 12VHPWR modular connectors. This fully modular 80 PLUS Titanium certified PSU packs a patented 16.8 million-color Riing Duo 14 RGB fan with 18 addressable LEDs preinstalled to provide various illumination options. The series supports software control, so users get to digitally control the lighting and manage their PSU/PC easily.











Fully Compatible with Intel ATX 3.0

Toughpower iRGB PLUS Titanium series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.









PCIe Gen 5.0 Ready

Toughpower iRGB PLUS Titanium 1650W comes with two 12VHPWR connectors to offer powerful and stable performance allowing the PSU to natively run next-generation GPUs.

The wattage marked on the 12VHPWR’s connector is the recommended wattage. (Ref. Intel design guideline) The native 16 PIN (12VHPWR) PCIe connectors of the Toughpower iRGB PLUS Titanium 1650W can deliver up to 600W for PCIe 5.0 graphics cards.









Made to Comply with the Latest Graphics Cards

As the power consumption of graphics cards increase, so has their demand for power. The iRGB PLUS Titanium series is designed to support NVIDIA and AMD graphics cards, and ready to supply the graphics cards according to their different ways of connections.









Specs:

Max. Output Capacity 1250WColor BlackDimension ( W / H / D ) 150mm(W)x86mm(H)x180mm(D)
 PFC (Power Factor Correction) Active PFC
 Power Good Signal 100-500 msecHold Up Time > 17msecInput Current 15.0AInput Frequency Range 50-60HzInput Voltage 100-240V~OPERATING TEMPERATURE 0°C to + 50°COperating Humidity 20% to 90%, non-condensingStorage Temperature -20°C to + 70°CStorage Humidity 5% to 95%, non-condensingCOOLING SYSTEM 14cm Riing Duo RGB FanEfficiency 80 PLUS Titanium at 115Vac input. MTBF 100,000 hrs minimumSafety Approval CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/ BSMIPCI-E 6+2pin 5PCIe 12+4pin 1(600W)
 PROTECTION OCP/OVP/UVP/OPP/OTP/SCP
