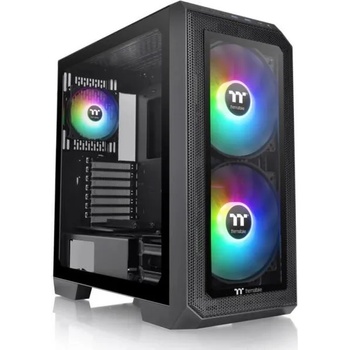

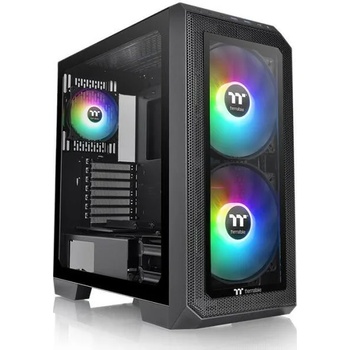

Thermaltake View 300 MX Black (CA-1P6-00M1WN-00)

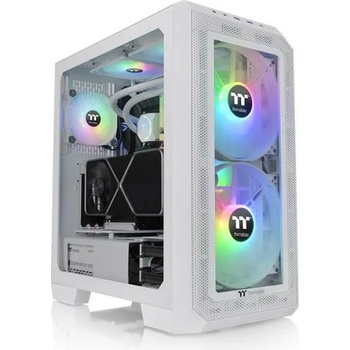

Thermaltake View 300 MX Snow





Designed with dual front panels and featuring two pre-installed 200mm ARGB PWM fans at the front and one 120mm ARGB PWM fan at the rear, the View 300 Snow MX Mid-Tower Chassis provides optimal cooling performance while allowing you to choose your own style and front panel design.





Pre-installed Two 200mm ARGB PWM Fans & One 120mm ARGB PWM Fan

Two 200mm ARGB PWM fans and one 120mm ARGB PWM fan are pre-installed, efficiently moving a considerable amount of air through the chassis with minor noise thanks to the fan speed control and through the PWM function. Furthermore, the LED lighting effect can be manipulated with a physical button or motherboard supported software.







Choose from a Tempered Glass Mesh Panel or a Perforated TT logo Steel Panel

There are two front panels that come in the box: one tempered glass mesh panel for an outstanding look, and the other is a perforated steel panel with TT logo cutouts for better airflow. Two styles for users to choose, display your PC build the way you want







Tempered Glass Window

The 4mm tempered glass panel on the side of the View 300 MX Snow is thicker and more scratch resistant than standard acrylic. It enables you to display and admire all your components in their full RGB glory.









Patented Rotatable PCI-e Slots

Patented rotatable PCI-e slots allow vertical GPU installation. The design, compared with the more traditional 7+2 approach, has little limitation regarding the thickness of the graphics card. Additionally, the enclosed riser cable bracket helps to secure the riser cable at bay (supporting a 180° connector).









Air Intake and Exhaust

The cooling performance of the View 300 MX Snow is fabulous thanks to two 200mm ARGB PWM fans and one 120mm ARGB PWM fan pre-installed. The Perforated TT logo Steel Panel allows optimal air intake, while the tempered glass mesh panel also provides sufficient air-intake through its mesh edge.









Hardware Compatibility

View 300 MX Snow has exceptional expandability. It can support E-ATX motherboards (12x13), a CPU cooler with a maximum height of 175mm, VGA clearance up to 400mm in length without a reservoir, and a power supply with a length of up to 200mm. Optimized for excellent cooling capabilities, the View 300 MX Snow can house up to three 140mm or two 200mm front fans, up to three 120mm fans on top, and a radiator of up to 360mm at the front, top and MB side to allow users to build their desired high-end system.







Specs:

CASE TYPE Mid Tower
 Dimension (H x W x D) 505 x 230 x 506 mmNET WEIGHT 10.4 kgPANEL 4mm Tempered Glass x 1
 Color Black
 MATERIAL SPCC + ABS
 COOLING SYSTEM Front(intake): 200 x 200 x 30 mm ARGB PWM fan (1000rpm, 35.5 dBA) x 2
Rear(exhaust): 120 x 120 x 25 mm ARGB PWM fan (1500rpm, 27.2 dBA) x 1
 Drive Bays 2 x 3.5, 4 x 2.5 or 6 x 2.5
 EXPANSION SLOTS 7 (Rotatable Patented Design)
 MOTHERBOARDS 6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX),
12 x 9.6 (ATX), 12 x 13 (E-ATX)
 I/O Port USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
 FAN SUPPORT Front: 3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm
2 x 200mm, 1 x 200mm
Top: 3 x 120mm, 2 x 120mm, 1 x 120mm,
2 x 140mm, 1 x 140mm
1 x 200mm
Right(M/B Side): 3 x 120mm, 2 x 120mm, 1 x 120mm (Without HDD Rack)
Rear: 1 x 120mm
 RADIATOR SUPPORT Front: 1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Top: 1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Right(M/B Side): 1 x 360mm, 1 x 240mm, 1 x 120mm(Without HDD Rack)
Rear: 1 x 120mm
 CLEARANCE CPU cooler height limitation: 175mmVGA length limitation: 280mm(With reservoir)
400mm(Without reservoir)
PSU length limitation: 200mm
