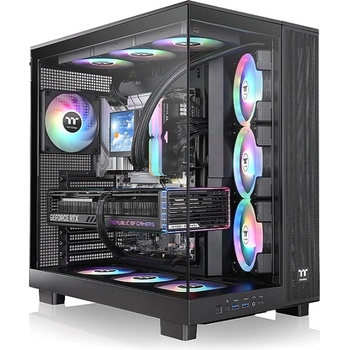

Thermaltake View 380 XL TG ARGB Black (CA-11E-00M1WN-00)

Thermaltake View 380 XL TG ARGB



The View 380 XL TG ARGB Mid Tower Chassis is a dual-chamber ATX case with Hidden-Connector Motherboard support, four 120mm Hydraulic Bearing ARGB Lite fans, and space for a 360mm radiator at both the top and motherboard side.





Compati ble with Hidden-Connector Motherboards

Created for next-generation motherboards, the View 380 XL TG ARGB Mid Tower Chassis features a special design that enables support for both standard motherboards and hidden-connector motherboards from ASUS, MSI and GIGABYTE.

*Compatible with hidden-connector motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series





D ual Chamber Design

The dual-chamber design provides more build space, improved cable management and increased airflow for greater flexibility.





Series ViewModel View 380 XL TG ARGB
 Dimension (H x W x D) 471 x 288 x 469 mm
(18.54 x 11.34 x 18.46 inch)PANEL 4mm Tempered Glass x 2
 Color BlackMATERIAL SPCC
 COOLING SYSTEM Right(intake): 120 x 120 x 25 mm ARGB Lite Reverse fan (1000rpm, 21.9 dBA) x 3

Rear(exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1Drive Bays 1 x 3.5, 2 x 2.5 or 3 x 2.5
 EXPANSION SLOTS 8MOTHERBOARDS 6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX)
 I/O Port USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
 PSU Standard PS2 PSU (optional)
 FAN SUPPORT Top:
3 x 120mm, 2 x 120mm, 1 x 120mm,
2 x 140mm, 1 x 140mm

Right:
3 x 120mm, 2 x 120mm, 1 x 120mm

Rear:
1 x 120mm

Bottom:
3 x 120mm, 2 x 120mm, 1 x 120mm
 RADIATOR SUPPORT Top:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm

Right:
1 x 360mm, 1 x 240mm, 1 x 120mm

Rear:
1 x 120mm
 CLEARANCE CPU cooler max height: 160mm
VGA max length: 420mm
PSU max length: 180mm
