Thermaltake View 380 XL TG ARGB Snow (CA-11E-00M6WN-00)

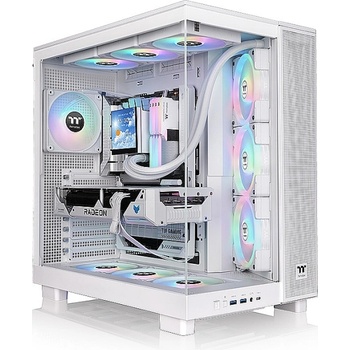

Thermaltake View 380 XL TG ARGB Snow

The View 380 XL TG ARGB Snow was designed with both performance and of course stunning views in mind. Sporting a fish tank dual chamber design, angled side intake with a curved mesh, recessed bottom fan mounts, and hinged storage doors in the rear compartment. On top of that there is room for radiators up to 360mm in length, GPUs up to 420mm in length and enough space to accommodate up to ten 120mm fans.





Hidden Connectors, Hidden Cables

Whether building with a standard layout motherboard or a brand-new hidden connector board the View 380 XL TG ARGB Snow has you covered. Featuring cutouts that support the installation and routing for standard motherboards and hidden connector boards from companies like ASUS, MSI, and GIGABYTE. No matter what you choose the View 380 XL TG ARGB Snow is the perfect candidate for a clean looking build.





Dual Chamber

Dual chamber chassis generally have the benefits of an increase in cable management and back section space and the View 380 XL TG ARGB Snow is no exception. Utilizing a floating style PSU mount the rear chamber has ample room and tie downs for routing and managing cables for a easy to work with layout.





Model View 380 XL TG ARGBSeries ViewDimensions 471 x 288 x 469 mm
(18.54 x 11.34 x 18.46 inch)Side Panel 4mm Tempered Glass x 2Color SnowMaterial SPCCCooling System Right(intake): 120 x 120 x 25 mm ARGB Lite Reverse fan (1000rpm, 21.9 dBA) x 3
Rear(exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1Drive Bays 1 x 3.5, 2 x 2.5 or 3 x 2.5Expansion Slots 8Motherboard 6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX)I/O Port USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1PSU Standard PS2 PSU (optional)Fan Support Top:
3 x 120mm, 2 x 120mm, 1 x 120mm,
2 x 140mm, 1 x 140mm

Right:
3 x 120mm, 2 x 120mm, 1 x 120mm

Rear:
1 x 120mm

Bottom:
3 x 120mm, 2 x 120mm, 1 x 120mmRadiator Support Top:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm

Right:
1 x 360mm, 1 x 240mm, 1 x 120mm

Rear:
1 x 120mmClearance CPU cooler max height: 160mm
VGA max length: 420mm
PSU max length: 180mm
