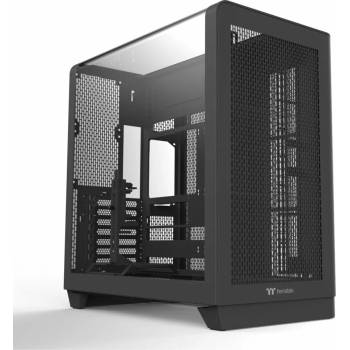

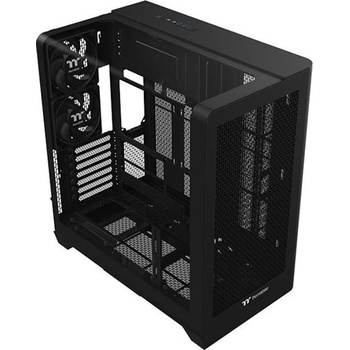

Thermaltake View 390 Air Black (CA-11F-00M1WN-00)

View 390 Air Mid Tower Chassis

The View 390 Air Mid Tower Chassis is an ATX case with a curved tempered glass side and top panel, a perforated front panel, rotational PCI-E slots, a GPU bracket and two CT120 rear fans. It can fit up to eleven 120mm fans, and supports a 360mm AIO radiator at the front or motherboard side. An optional 6" LCD Screen Kit can be added for real-time system information and enhanced visuals.



Compatible with Hidden-Connector Motherboards

Designed for next-gen builds, the View 390 Air Mid Tower Chassis supports both standard and hidden-connector motherboards from ASUS, MSI, and GIGABYTE.

*Compatible with hidden-connector motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series





C urved Tempered Glass Side Panel

The View 390 Air Mid Tower Chassis features a 4mm curved tempered glass side panel for a distinctive look.



Good Cooling Support

The View 390 Air Mid Tower can support up to two 200mm fans at the front, up to eleven 120mm fans in total, and a 360mm AIO radiator at the front or the motherboard side, providing good cooling capability.



CASE TYPE Mid Tower
 Dimension (H x W x D) 503 x 287 x 485mm
(19.80 x 11.30 x 19.1inch)
 PANEL 4mm Tempered Glass x 1
 Color Black
 MATERIAL SPCC
 COOLING SYSTEM Rear (exhaust): 120 x 120 x 25 mm CT120 fan (500~2000rpm, 25.8 dBA) x 2
 Drive Bays 2 x 3.5 , 1 x 2.5 or 3 x 2.5
 EXPANSION SLOTS 7(Rotatable Patented Design)
 MOTHERBOARDS 6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX)
 Hidden-Connector Motherboard 9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX)
 I/O Port USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1
 PSU Standard PS2 PSU (optional)
 FAN SUPPORT Front:
3 x 120mm
2 x 140mm
2 x 200mm

Right:
3 x 120mm

Rear:
2 x 120mm

Bottom:
3 x 120mm
 RADIATOR SUPPORT Front Side(AIO):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm

Right Side(AIO):
1 x 360mm, 1 x 240mm, 1 x 120mm
 CLEARANCE CPU cooler height limitation: 160mm

VGA length limitation:
390mm with Radiator /420mm without Radiator

PSU length limitation: 200mm (with 2.5 SSD)
260mm (without 2.5 SSD)
