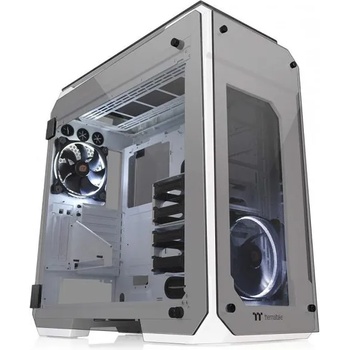

Thermaltake View 71 TG Snow Edition (CA-1I7-00F6WN-00)

View 71 Tempered Glass Snow Edition



Thermaltake View 71 Tempered Glass Snow Edition Full Tower Chassis

Designed to expand the legacy of the View Series lineup, the View 71 Tempered Glass Snow Edition Full Tower Chassis features unrivaled cooling support and expandability surrounded in tempered glass for a one of a kind view. Swing open full window tempered glass panels for easy access with all panels properly spaced for optimal airflow. Preinstalled with two 140mm Riing white fans, Vertical GPU mount and 3-Way radiator support for today’s PC hardware demands, the only limitation is your imagination.





TT Premium

To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed TT Premium with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.





Make the Move to Modular Design

The View 71 TG Snow Edition enables users to freely build their system from the ground up with modular panels, racks, brackets, and pre-design mounting arrays. No more unreachable screw corners or gaps to enjoy even more space for your precious parts during installation or maintenance.





Series ViewCASE TYPE Full TowerDimension (H x W x D) 577 x 274 x 592 mm
(22.7 x 10.8 x 23.3 inch)NET WEIGHT 18.9 kg / 41.66 lbPANEL 5mm Tempered Glass x 4 (Left & Right & Front & Top)Color Exterior & Interior : WhiteMATERIAL SPCCCOOLING SYSTEM Rear (exhaust) :
140 x 140 x 25 mm Riing LED White fan
(1400rpm, 28dBA) (1000rpm, 22 dBA with LNC)
Front (intake) :
140 x 140 x 25 mm Riing LED White fan
(1400rpm, 28dBA) (1000rpm, 22 dBA with LNC)Drive Bays
-Accessible
-Hidden
2.5 x 4 or 3.5x4 (HDD Rack)
2.5x 6 or 3.5 x 3EXPANSION SLOTS 8+2MOTHERBOARDS 6.7 x 6.7 (Mini ITX), 9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX), 12 x 13(E-ATX)
 I/O Port USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1PSU Standard PS2 PSU (optional)FAN SUPPORT Front:
3 x 120mm , 2 x 140mm
Top:
3 x 120mm , 3 x 140mm
Rear:
1 x 120mm, 1 x 140mm
Bottom:
2 x 120mmRADIATOR SUPPORT Front:
1 x 360mm , 1 x 420mm
Top:
1 x 360mm , 1 x 420mm
Rear:
1 x 120mm, 1 x 140mm
Right:
1 x 360mm, 1 x 420mm
Bottom:
1 x 240mmCLEARANCE CPU cooler height limitation:
190mm
VGA length limitation:
310mm(With HDD Rack)
410mm(Without HDD Rack)
PSU length limitation:
220mm (Without Bottom Fan)
