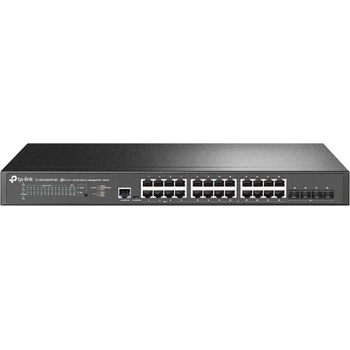

TP-Link TL-SG3428XPP-M2

TL-SG3428XPP-M2 JetStream 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

• 2.5G PoE++/PoE+ Ports for WiFi 7/6E/6: 24× 2.5 Gbps ports smash the 2.5G barrier and unlock the full potential of WiFi 7/6E/6 APs.
• 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
• 500 W PoE Budget: 8× 802.3bt/at/af/-compliant PoE++ and 16× 802.3at/af-compliant PoE+ ports with a total power supply of 500 W*.
• Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• Static Routing: Helps route internal traffic for more efficient use of network resources.
• Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
• Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.





Unlock the Full Potential of WiFi 7/6E/6 with Multi-Gigabit PoE++/PoE+ Ports

Featuring 8x PoE++ and 16x PoE+ 2.5G ports, the switch is capable of future network expansion and deployment, providing sufficient bandwidth for incoming WiFi 7/6E/6 APs. Designed to use a single Ethernet cable for both data and power transmission, it supports up to 500 W total PoE power budget* and flexible installation to fit in various application scenarios.





Enterprise Switch with 10G Uplink

4× 10 Gbps SFP+ slots provide non-blocking switching
performance and ultra-low latency, so reliable and
lightning-fast connections to server and other switches are
easily built.





Software Defined Networking (SDN) with Cloud Access

Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.





Specifications:

ХАРДУЕРНИ ХАРАКТЕРИСТИКИИнтерф ейс24× 2.5 Gbps RJ45 Ports
4× 10G SFP+ Slots
1× RJ45 Console Port
1× Micro-USB Console PortБрой вентилатори 3
 Захранване 100-240 V AC~50/60 HzPoE портове (RJ45)Standard: 802.3bt/at/af compliant
PoE++ Ports(802.3bt PoE): 8 Ports, up to 60 W per port
PoE+ Ports(802.3at PoE): 16 Ports, up to 30 W per port
Power Budget: 500 WРазмери (Ш x Д x В ) 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)Монтаж Rack MountableМакс. консумация на енергия 629.1 W (110V/60Hz)Max Heat Dissipation 2153.45 BTU/h (110 V/60 Hz)ПРОИЗВОДИТЕЛНОСТКо
