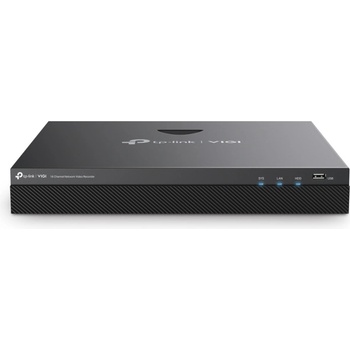

TP-Link 16-channel NVR NVR2016H

VIGI 16 Channel Network Video Recorder

• 4K HDMI Video Output & 16MP Decoding Capacity:  Sharp image definition up to 8MP, and 8-ch@2MP† decoding capacity allows you to enjoy more-channels live view and playback at the same time.
• 16-Channel Simultaneous Playback*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
• H. 265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
• ONVIF Ensures Compatibility△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
• Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
• 24/7 Continuous Recording: Stores up to 20 TB of footage (1048 storage days‡) from connected cameras to secure your data for quick, convenient access.
• Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are.
• Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience





Every Angle All on One Screen 4K HDMI Video Output & 16MP Decoding Capacity

Sharp image definition up to 8MP (4K) ensures you capture every detail. 8-ch@2MP decoding capacity allows you to enjoy more-channels live view and playback at the same time.







Reviewing Footage is Faster than Ever 16-Channel Simultaneous Playback

Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.



  Two-Way Audio

With voice intercom support, scare off any potential thieves or intruders from wherever you are.





Specifications:

Video and AudioIP Video Input 16-ChannelIncoming Bandwidth 80 MbpsOutgoing Bandwidth 60 MbpsHDMI Output Resolution 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60Hz, 3840x2160/30HzVGA Output Resolution 1 Channel, Resolution: 1280x720/60Hz, 1280x1024/60Hz, 1440x900/60Hz, 1680x1050/60Hz, 1920x1080/60HzVideo Output Mode HDMI/VGA Simultaneous OutputMulti-View Display 1/4/6/8/9/16DECODINGAudio Compression G. 711A/G. 711U/G. 726Video Compression H. 265+/H. 265/ H. 264+/H. 264Record Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF /DCIF/
2CIF/CIF/QCIFSynchronous Playback 16-ChannelCapability 25fps:
2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

30fps:
4-ch @ 3MP, 2-ch @ 5MPRecord ManagementRecord Mode Manual Recording, Scheduling Recording, Motion Detection RecordingPlayback Mode Instant Playback, Rgular Playback, Tag Playback, Event PlaybackBackup Mode Regular Backup, Video Clip BackupPlayback Function Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full
Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/OffNETWORKProtocol UPnP (Plug and Play), NTP (Network Timing)Mobile Phone Access Android, iOSWeb Browser Chrome (57+), Firefox (52+), Edge (91+)Interoperability ONVIF, CGIExternal InterfaceNetwork Interface 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet InterfaceUSB Interface 1 Front USB 2.0 Port, 1 Rear USB 2.0 PortAudio Interface 1, Audio In; 1, Audio OutAlarm In/Out N/ASerial Interface N/APower 1× DC JackReset Button 1Speaker N/AeSATA 1HDMI 1VGA 1HARD DISKSATA 2 SATA InterfacesCapacity Up to 10 TB Capacity for Each HDDAlarmGeneral Alarm Motion Detection, Video Tampering, Intrusion Detection,
Line-Crossing DetectionAnomaly Alarm Video Loss, Offline and IP Conflict, Disk Exception, Login
Exception, Fan ExceptionAlarm Linkage Recording, White Ligh Alarm, Buzzer, Log, Audible AlarmGENERALStorage Temperature -40–70 °CStorage Humidity 10%~90% RH Non-CondensingWorking Temperature -10–55 °CWorking Humidity 10%~90% RH Non-CondensingDimensions( W X D X H ) 330 × 285 × 45 mmNet Weight 1.9 KgGross Weight 3.2 KgPower Supply 12V DC/3.3APower Consumption 4.78 W (Without Disk)
24.16 W (With Disk)
