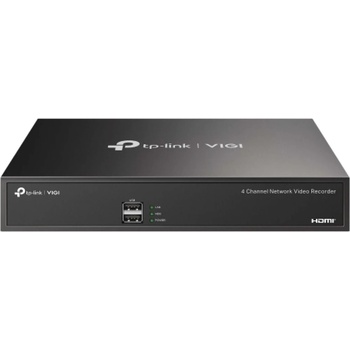

TP-Link 4-channel NVR NVR1004H

VIGI NVR1004H VIGI 4 Channel Network Video Recorder

• 4-Channel Live View and 4K HDMI Video Output
• 2-ch @ 8MP/ 4-ch @ 4MP Decoding Capability
• 4-Channel Synchronous Playback†
• 80 Mbps Incoming Bandwidth and 60 Mbps Outgoing Bandwidth
• 1 SATA Interface (up to 16 TB) *
• H. 265+ Compression Technology
• HDMI and VGA Simultaneous Output
• Remote Monitoring





Vi deo and AudioIP Video Input 4-ChannelIncoming Bandwidth 80 MbpsOutgoing Bandwidth 60 MbpsHDMI Output Resolution 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60HzVGA Output Resolution 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60HzVideo Output Mode HDMI/VGA Simultaneous OutputMulti-View Display 1/4DECODINGAudio Compression G. 711A/G. 711U/G. 726Video Compression H. 265+/H. 265/ H. 264+/H. 264Record Resolution 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIFSynchronous Playback 4-ChannelCapability 2-ch @ 8MP, 4-ch @ 4MPRecord ManagementRecord ModeManual Recording
Scheduling Recording
Motion Detection RecordingPlayback ModeInstant Playback
Regular Playback
Tag Playback
Event PlaybackBackup ModeRegular Backup
Video Clip BackupPlayback FunctionPlay
Pause
Stop
Fast Forward
Fast Backward
Play By Frame
Full Screen
Video Clip
Export Clip
Digital Zoom
Lock Recording
Audio On/OffNETWORKProtocol UPnP (Plug and Play), NTP (Network Timing)Mobile Phone Access Android, iOSWeb Browser Chrome (57+), Firefox (52+), Edge (91+)Interoperability ONVIF, CGIExternal InterfaceNetwork Interface 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet InterfaceUSB Interface 2× USB 2.0Audio Interface 1, Audio In; 1, Audio OutAlarm In/Out N/ASerial Interface N/APower 1× DC JackReset Button 1Speaker N/AeSATA N/AHDMI 1VGA 1HARD DISKSATA 1 SATA InterfaceCapacity Up to 16 TB Capacity for Each HDD*AlarmGeneral AlarmMotion Detection
Video Tampering
Line-Crossing Detection
Intrusion Detection
Region Entering Detection
Region Exiting Detection
Object Abandoned/Removal Detection
Vehicle Detection
Human Detection
Smart FrameAnomaly AlarmVideo Loss
Offline and IP Conflict
Disk Exception
Login ExceptionAlarm LinkageRecording
White Light Alarm
Buzzer
Log
Audible AlarmGENERALStorage Temperature -40–70 °CStorage Humidity 10%~90% RH Non-CondensingPackage ContentsVIGI Network Video Recorder
Power Adapter
HDD Screws
Mouse
Rubber Feet
Quick Installation GuideWorking TemperatureNVR: -10–55 °C
Power Adapter: 0–40 °CWorking Humidity 10%~90% RH Non-CondensingDimensions( W X D X H ) 246.2 × 148.2 × 45 mmExternal Power Supply DC 12V/1.5ANet Weight 0.59 kgGross Weight 0.95 kgPower Consumption 4.25 W (without disk)
