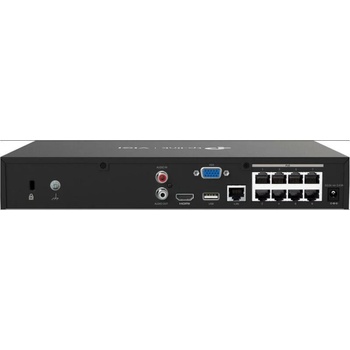

TP-Link 8-channel NVR NVR1008H-8MP

VIGI 8 Channel PoE+ Network Video Recorder

• 4K HDMI Video Output & 16MP Decoding Capacity:  Sharp image definition up to 8MP and an 8-channel display ensures you capture every detail, from every angle ‡ .


• Simplified Deployment with PoE+: Easily connect and power your PoE camera with one RJ45 cable transmitting both data and power. No power adapter needed.


• 8-Channel Simultaneous Playback * : Replay the feed from up to 8 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.


• H. 265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.


• ONVIF Ensures Compatibility △ : Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.


• Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.


• 24/7 Continuous Recording: Stores up to 10 TB of footage from connected cameras to secure your data for quick, convenient access.


• Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.


• Flexible Installation: Choose the suitable installation method by simply housing your NVR on a rack, or placing it on or under a desk for greater convenience.


• Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.







Dedicated 8 PoE+ ports (113 W budget) for simplified IP camera deployment.

Features 8× 10/100Mbps PoE+ ports, the NVR supports up to 30 W on each PoE+ port. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible installation to fit in various surveillance scenarios for small businesses, such as groceries, warehouses, restaurants, and financial institutions.

МРЕЖА

Protocol
TCP/IP, DHCP, DNS, NTP, UPnP

Incoming Bandwith
80 Mbps

Outgoing Bandwidth
60 Mbps

ИНТЕРФЕЙСИ

Мрежов интерфейс
1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface

USB Interface
2× USB 2.0

HARD DISK

SATA
1 SATA Interface

Capacity
Up to 10 TB

ОБЩИ ХАРАКТЕРИСТИКИ

Съдържание на пакета
VIGI Network Video Recorder

Power Adapter

HDD Screws

Mouse

Quick Installation Guide

Околна температура при работа
-10–55 °C

Размери (Ш x Д x В )
294 × 180 × 44 mm

PoE
Standard: 802.3af/at

PoE Ports: Ports 1-8

PoE Budget: 113 W

Външно захранване
53.5V DC/2.43 A

Power Consumption
4.82 W (without disk)

ВИДЕО/СНИМКА

Video Input
8-Channel IP Video Input, up to 8 MP Resolution

Recording Resolution
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/ 4CIF/DCIF/ 2CIF/CIF/QCIF

HDMI Output Resolution
1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz,

1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz,

1024x768/60Hz, 1280x720/60Hz

VGA Output Resolution
1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz,

1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz,

1024x768/60Hz,

DECODING

Decoding Format
H. 265+/H. 265/ H. 264+/H. 264

Live View/Playback Resolution
8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/ 4CIF/

DCIF/2CIF/CIF/QCIF

Synchronous Playback
8 Channel

Capability
2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
