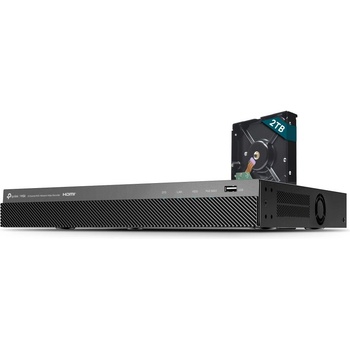

TP-Link 8-channel VIGI NVR2008H-8MP

Мрежови видео рекордер TP-Link VIGI NVR2008H-8MP 8-канален PoE+

• 8-канален преглед на живо и 4K HDMI видео изход
• 8× 10/100 Mbps PoE+ портове с 93 W PoE бюджет
• 4-канален @ 4MP/ 8-канален @ 2MP възможност за декодиране
• 8-кана но синхронно възпроизвеждане
• 8 0 Mbps входяща честотна лента и 60 Mbps изходяща честотна лента
• 2× SATA интерфейса и 1 до 16 TB
• H. 265+ технология за компресиране
• HDMI и VGA едновременен изход
• Дистанцион о наблюдение

8-канален преглед на живо
4K HDMI видео изход
93W PoE бюджет
8-канален преглед на живо
Интелигентно видео кодиране
Пълна съвместимост
Автоматично инициализиране
2× SATA интерфейса (1 до 16 TB)

Автома ично инициализиране за бърза конфигурация
Просто щракнете върху „Автоматично инициализиране, за да настроите основни IPC и параметри на твърдия диск, значително намалявайки времето за конфигуриране.

Кликнете върху „Автоматично инициализиране

Инициализира е

Готово







Specifications:

Video and AudioIP Video Input 8-ChannelIncoming Bandwidth 80 MbpsOutgoing Bandwidth 60 MbpsHDMI Output Resolution 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60HzVGA Output Resolution 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60HzVideo Output Mode HDMI/VGA Simultaneous OutputMulti-View Display 1/4/6/8DECODINGAudio Compression G. 711A/G. 711U/G. 726Video Compression H. 265+/H. 265/ H. 264+/H. 264Record Resolution 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF /DCIF/2CIF/CIF/QCIFSynchronous Playback 8-Channel†Capability25fps:
2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP

30fps:
4-ch @ 3MP, 2-ch @ 5MPRecord ManagementRecord ModeManual Recording
Scheduling Recording
Motion Detection RecordingPlayback ModeInstant Playback
Regular Playback
Tag Playback
Event PlaybackBackup ModeRegular Backup
Video Clip BackupPlayback FunctionPlay
Pause
Stop
Fast Forward
Fast Backward
Play By Frame
Full Screen
Video Clip
Export Clip
Digital Zoom
Lock Recording
Audio On/OffNETWORKProtocolo UPnP (Plug and Play), NTP (Network Timing)Mobile Phone Access Android, iOSWeb Browser Chrome (57+), Firefox (52+), Edge (91+)Interoperability ONVIF, CGIExternal InterfaceNetwork Interface 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet InterfaceUSB Interface 1 Front USB 2.0 Port, 1 Rear USB 2.0 PortAudio Interface 1, Audio In; 1, Audio OutAlarm In/Out N/ASerial Interface N/APower 1× DC JackReset Button 1Speaker N/AeSATA 1HDMI 1VGA 1HARD DISKSATA 2 SATA InterfacesCapacityUp to 10 TB Capacity for Each HDD
1 × 2TB HDD PreinstalledPoEStandard 802.3at/af CompliantInterface 1-8, RJ-45 10/100 Mbps Self-Adaptive Ethernet InterfacePoE Budget 93 W△ Available for All PoE+ Ports, 30 W Max per PortAlarmGeneral AlarmMotion Detection
Video Tampering
Line-Crossing Detection
Intrusion Detection
Region Entering Detection
Region Exiting Detection
Object Abandoned/Removal Detection
Vehicle Detection
Human Detection
Smart FrameAnomaly AlarmVideo Loss
Offline and IP Conflict
Disk Exception
Login Exception
Fan ExceptionAlarm LinkageRecording
White Light Alarm
Buzzer
Log
Audible AlarmGENERALStorage Temperature -40–70 °CStorage Humidity 10%~90% RH Non-CondensingContenidos del PaqueteVIGI Network Video Recorder
Power Adapter
Power Cables
HDD Power Cables
HDD Data Cables
Mounting Accessories
Mouse
Quick Installation GuideWorking TemperatureNVR: -10–55 °C
Power Adapter: 0–40 °CWorking Humidity 10%~90% RH Non-CondensingDimensiones (W X D X H) 330 × 285 × 45 mmNet Weight 2.1 KgGross Weight 4.1 Kg
