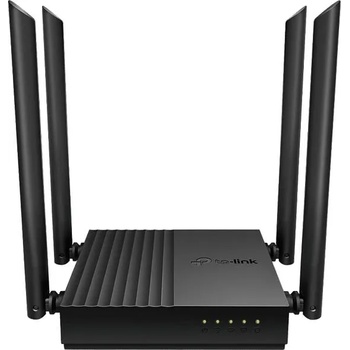

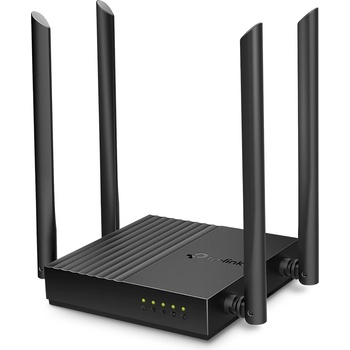

TP-Link Archer A64

802.11ac Wave2 WiFi – 867 Mbps on the 5 GHz band and 400 Mbps on the 2.4 GHz band†
Boosted WiFi Coverage – 4 antennas provide stable wireless connections and optimal coverage

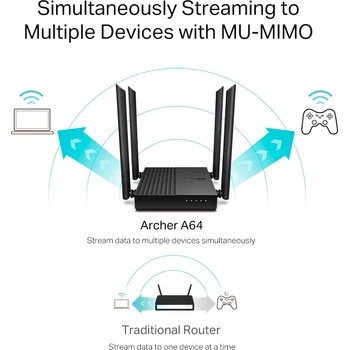

MU-MIMO –Easy network management at your fingertips with TP-Link TetherMU-MIMOachieves 2X efficiency by communicating with up to 2 devices at once‡
Beamforming – Beamforming technology delivers a highly efficient wireless connection
AP Mode – Supports Access Point mode to create a new WiFi access point
Intelligent Connection – Smart Connect directs clients to the less congested band and Airtime Fairness optimizes the time usage
Easy Setup – Easy network management at your fingertips with TP-Link Tether

БЕЗЖИЧНИ ХАРАКТЕРИСТИКИ

Standards
Wi-Fi 5
IEEE 802.11ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds
AC1200
5 GHz: 867 Mbps (802.11ac)
2.4 GHz: 400 Mbps (802.11n)

WiFi Range
3 Bedroom Houses

4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity
Medium

Dual-Band
Allocate devices to different bands for optimal performance

MU-MIMO
Simultaneously communicates with multiple MU-MIMO clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

Working Modes
Router Mode
Access Point Mode

HARDWARE

Processor
1.2 GHz CPU

Ethernet Ports
1× Gigabit WAN Port
4× Gigabit LAN Ports

Бутони
WPS/Reset Button

Power
12V = 1A

СИГУРНОСТ

WiFi Encryption
WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)

Network Security
SPI Firewall
Access Control
IP and MAC Binding

Guest Network
1× 2.4 GHz Guest Network
1× 5 GHz Guest Network

SOFTWARE

Protocols
IPv4
IPv6

Parental Controls
URL Filtering
Time Controls

WAN Types
Dynamic IP
Static IP
PPPoE(Dual Access)
PPTP(Dual Access)
L2TP(Dual Access)

Quality of Service
QoS by Device

Cloud Service
OTA Firmware Upgrade
TP-Link ID
DDNS

NAT Forwarding
Port Forwarding
Port Triggering
UPnP
DMZ

IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN

DHCP
Server
DHCP Client List
Address Reservation

DDNS
TP-Link
NO-IP
DynDNS

Management
Tether App
Webpage

PHYSICAL

Dimensions (W×D×H)
4.7 × 4.7 × 1.1 in
(120 × 120 × 27.9 mm)

Package Contents
Wireless Router Archer A64
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide

OTHER

System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)

Certifications
CE, RoHS

Environment
Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

TEST DATA

WiFi Transmission Power
CE:
