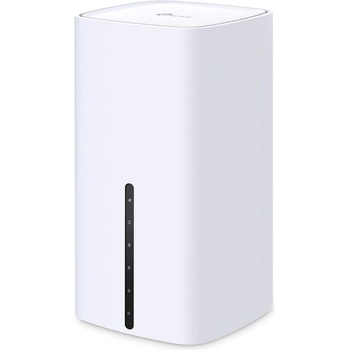

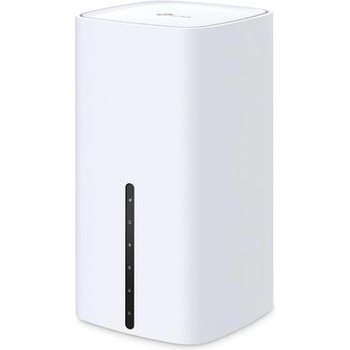

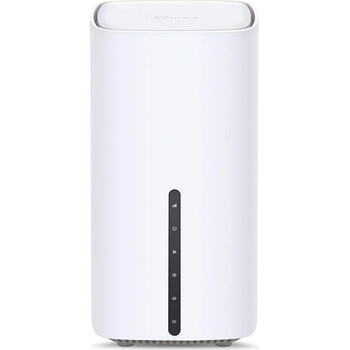

TP-Link Archer NX500 AX3000

Archer NX500

5G AX3000 Wireless Dual-Band Gigabit Router

• Boost Your 5G Speed - Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences.
• AX3000 Dual-Band Wi-Fi 6 Speed - 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
• Plug & Play - Enjoy 5G network right after inserting a SIM card.
• EasyMesh-Compatible - Co-work with EasyMesh products, to provide a more flexible and cost-effective Mesh network with a single Wi-Fi name for seamless whole-home coverage.
• Gigabit WAN/LAN Port - The gigabit WAN/LAN port enables NX500 to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems.



Superior 5G –
A Revolutionary Experience

Take advantage of your advanced 5G network with download speeds up to 4.67 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, blazingly fast file downloads, and smooth video chats and video conferences. At the same time, NX500 is backward compatible with 4G mode.





Share 5G Speed with Reliable Wi-Fi

Thanks to cutting-edge 5G tech, NX500 boosts up to 4.67 Gbps download speeds fulfills your devices’ needs. Armed with WiFi 6 technology, NX500 is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh WiFi to enjoy the future network that loads faster and connects more.







C ategory Specification DetailsCellular Network Network Mode 5G / 4G / 3G  5G Bands N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N75/N 76/N77/N78 (2100/1800/850/2600/900/800/700/2600/230 0/2500/1500/1500/3700/3500 MHz)  4G FDD-LTE Bands B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1500 MHz)  4G TDD-LTE Bands B38/B40/B41/B42/B43 (2600/2300/2500/3500/3700 MHz)  3G Bands DC-HSDPA/HSPA+/HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)Cellular Speed 5G Download Speed Up to 4.67 Gbps  5G Upload Speed Up to 1.25 Gbps  4G LTE Category LTE Cat19  4G Download Speed Up to 1.6 Gbps  4G Upload Speed Up to 211 MbpsSIM SIM Type Nano SIM CardHardware Ethernet Ports 1 × 10/100/1000 Mbps LAN/WAN Port 2 × 10/100/1000 Mbps LAN Ports  SIM Slot 1 × Nano SIM Card Slot  Antenna Interfaces 2 × External SMA-F Antenna Interfaces  Buttons WPS, Reset, Power On/Off, Wi-Fi On/Off  Power Supply Input: 100–240V~50/60Hz 0.6AOutput: 12V DC 2A  Dimensions (W × D × H) 3.9 × 3.9 × 7.5 in (99 × 99 × 190 mm)  Internal Antennas 8 × 5G/LTE Internal Antennas 3 × Wi-Fi Internal AntennasWireless Wireless Standards IEEE 802.11ax/ac/n/a (5 GHz)IEEE 802.11ax/n/b/g (2.4 GHz)  Frequency Bands 2.4 GHz & 5 GHz  Wireless Speed 574 Mbps @ 2.4 GHz2402 Mbps @ 5 GHz  Receiver Sensitivity (5 GHz) 11a 54M: -80 dBm11ax HE20: -68 dBm11ax HE40: -65 dBm11ax HE80: -62 dBm11ac VHT20: -76 dBm11ac VHT40: -72 dBm11ac VHT80: -68 dBm11n HT20: -79 dBm11n HT40: -75 dBm  Receiver Sensitivity (2.4 GHz) 11g 54M: -78 dBm11ax HE20: -65 dBm11ax HE40: -62 dBm11ac VHT20: -73 dBm11ac VHT40: -68 dBm11n HT20: -75 dBm11n HT40: -72 dBm  Wireless Functions Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics  WAN Failover Yes  Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK  Transmit Power
