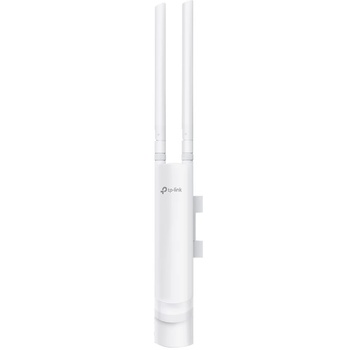

TP-Link EAP113-OUTDOOR

EAP113-Outdoor 300Mbps Wireless N Outdoor Access Point

• Ideal for Outdoor Environment: IP65 weatherproof enclosure for outdoor Wi-Fi applications.
• Fast Wi-Fi: Up to 300Mbps Wi-Fi with 2×2 MIMO.
• Long-Range Coverage: Dedicated high-power amplifier and professional antennas.
• Integrated into Omada SDN: Centralized Cloud Management and Intelligent Monitoring.
• Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
• PoE Support:  Support both standard 802.3af and 48V Passive PoE for flexible installations.
• Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc. ) and abundant wireless security technologies.





Wi-Fi That Goes the Distance

With high transmission power and two high-gain omnidirectional antennas,
EAP113-Outdoor provides stable wireless coverage at a range of up to 200 meters* in outdoor settings.





Specially Designed Weatherproof Enclosure for
Outdoor Environment

Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against the harsh outdoor condition.





Seamless Integrated into Omada SDN Platform

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.





Specifications:

HARDWARE FEATURESInterface 1× Fast Ethernet (RJ-45) Port (Support 48V Passive PoE/802.3af PoE)Button ResetPower Supply 48V Passive PoE (+4,5pins; -7,8pins);
802.3af PoEPower Consumption 4.11 WDimensions ( W x D x H ) 8.5 × 1.8 × 1.5 in (214.9 × 46 × 37.7 mm)Antenna Type 2× 3 dBi External Omni waterproofWeatherproof Enclosure IP65Mounting Pole / Wall Mounting (Kits included)WIRELESS FEATURESWireless Client Capacity 100+**Wireless Standards IEEE 802.11n/g/bFrequency 2.4 GHzSignal Rate11n: Up to 300 Mbps (dynamic)
11g: Up to 54 Mbps (dynamic)
11b: Up to 11 Mbps (dynamic)
 Transmit PowerCE: ≤20 dBm (EIRP)
FCC: ≤22 dBm
 Wireless FunctionsMultiple SSIDs（Up to 8 SSIDs）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
 Wireless SecurityCaptive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK
 MANAGEMENTOmada App YesCentralized ManagementOmada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software ControllerCloud Access Yes. Requiring the use of OC300, OC200, or Omada Software Controller. Email Alerts YesLED ON/OFF Control YesManagement MAC Access Control YesSNMP v1, v2cSystem Logging Local/Remote Syslog Local/Remote SyslogSSH YesWeb-based Management HTTP/HTTPSL3 Management YesMulti-site Management YesManagement VLAN Yes
