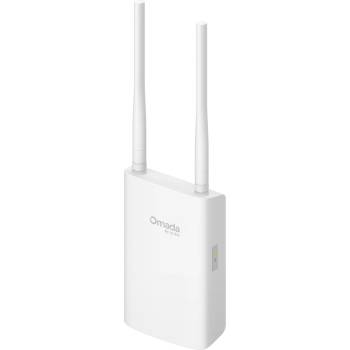

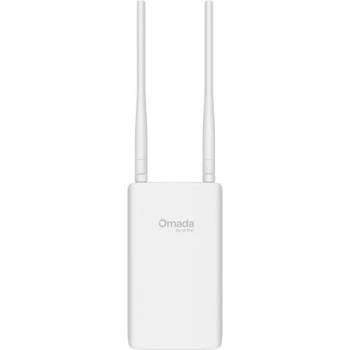

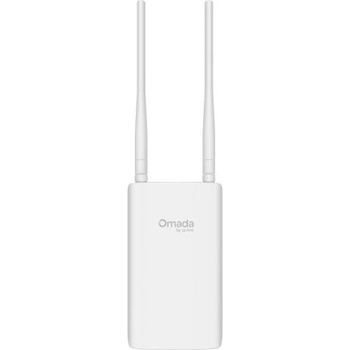

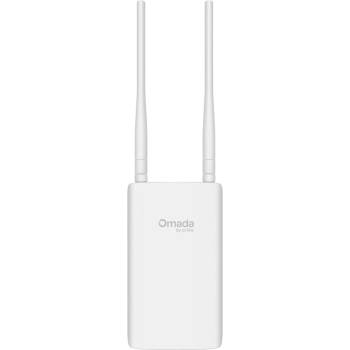

TP-Link EAP603-OUTDOOR

EAP603-Outdoor

AX1800 Indoor/Outdoor Wi-Fi 6 Access Point

• Seamless 1.8Gbps Wi-Fi 6 Speeds: 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz.

• Dual-Band Omnidire ctional Coverage: Up to 300 m (984 ft) long-range coverage.
• PoE+ Powered: Supports both 802.3at PoE and Passive PoE (adapter included).
• Ideal for Outdoor Environments: IP65 weatherproof, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C.
• Easy and Quick Setup: Wall/pole mounting; Omada SDN for one-click setup
• Advance d Features: Omada Mesh, Seamless Roaming, and Centralized Cloud Management.



Perfect for Outdoor Wi-Fi Coverage





< p>Long-Range Omni-directional Coverage

2× external antennas equipped with high-power amplifiers utilize Wi-Fi 6 technology to provide strong and expansive wireless coverage to various outdoor environments.



Designed for Outdoors

The fully sealed EAP603-0utdoor offers complete dustproof protection and the ability to withstand prolonged submersion in water. It withstands the harsh outdoor environments. Designed for Outdoors

The fully sealed EAP603-0utdoor offers complete dustproof protection and the ability to withstand prolonged submersion in water. It withstands the harsh outdoor environments.







S pecification DetailsInterfac e1× 10/100/1000 Mbps Gigabit Ethernet Port (RJ45), PoE in 1× Grounding TerminalButton 1× Reset button (press >5 seconds to restore factory settings)Power Supply Input: 802.3at PoE+ (42.5–57 V, 0.36 A)Max. Power Consumption15.8 W (802.3at PoE+, 2.4 GHz radio 2×2, 5 GHz radio 2×2, wired link up to 1 Gbps) Idle mode: 4.8 W (PoE)Dimensions (W × D × H)Main Unit: 230 × 207.5 × 69.7 mm (9.06 × 8.17 × 2.74 in. ) Shipping Unit: 324 × 104 × 245 mm (12.76 × 4.09 × 9.65 in. )Antenna (Wi-Fi)2.4 GHz: 2 × 4 dBi (peak gain), external omnidirectional 5 GHz: 2 × 5 dBi (peak gain), external omnidirectionalSingle-antenna peak gainsAntenna (IoT / Bluetooth)Bluetooth: 1 × 4 dBi (peak gain), internal omnidirectionalBluetooth YesWeatherproof EnclosureIP66 (Wall Mount) IP65 (Pole Mount)MountingPole Mount (kits included) Wall Mount (kits included)Wireless Coverage2.4 GHz: up to 200 m (2,150 ft) 5 GHz: up to 300 m (3,200 ft)Wireless Standards5 GHz: IEEE 802.11a/n/ac/ax 2.4 GHz: IEEE 802.11b/g/n/axOperating Frequency2.4 GHz 5 GHzSignal Rate2.4 GHz: up to 573 Mbps 5 GHz: up to 1201 MbpsCountry-specific restrictions applyWireless Capacity & FunctionsMax BSSIDs: 16 (8 per band) Max associated STAs: 250+ Guest Network, ACS, Airtime Fairness, Band Steering Rate Control, Rogue AP Detection, URL Filtering WLAN Optimization, Lock to AP SSID/Client Rate Limit, Load Balance Seamless Roaming (802.11k/v/r, Non-Stick, Ping-Pong Suppression, AI Roaming) Multicast/Broadcast Management (conversion, filtering, rate limit) QoSWireless SecurityACL, MAC Filter 802.1X, MAC-based authentication WPA / WPA2 / WPA3 (Personal & Enterprise), Enhanced Open, None RADIUS Accounting PPSK (with & without RADIUS) Captive Portal (voucher, SMS, RADIUS, LDAP, external portal, etc. ) EAP Types: TLS, TTLS, PEAP, CHAP, SIM, AKA, GTC, FAST, MD5, MSCHAPv2, PEAPv0/v1Transmit Power (Maximum) CE (EIRP): 2.4 GHz: 20 dBm 5 GHz: 23 dBm (U-NII-1/2A), 29 dBm (U-NII-2C)FCC (Conducted): 2.4 GHz: 25 dBm 5 GHz: 27 dBm (U-NII-1/3), 24 dBm (U-NII-2A/2C)Transmit Power (Minimum) CE (EIRP): 2.4 GHz: 7 dBm 5 GHz: 6 dBm (all U-NII bands)FCC (Conducted): 2.4 GHz: 4 dBm 5 GHz: 4 dBm (all U-NII bands)Power Adjustment Adjustable in 1 dBm incrementsManagement App Omada App supportedRestore & Backup YesFirmware Upgrade Via WebNTP Support YesCentralized ManagementOmada Hardware Controller Omada Software Controller Omada Central (Cloud) Omada AppCloud Access Yes (requires Omada controller)Email Alerts YesLED Control On / OffManagement MAC ACL YesSNMP v1, v2c, v3SSH YesWeb Management Yes
