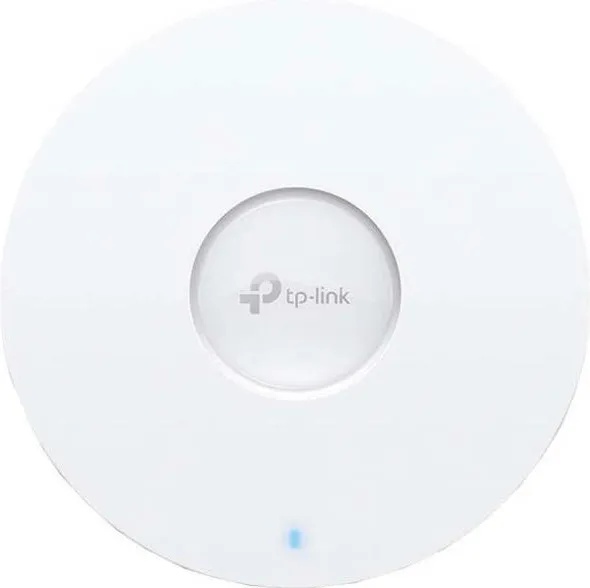

TP-Link EAP613 AX1800





EAP613

AX1800 Ceiling Mount WiFi 6 Access Point

•


  Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds. †





•


  High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.





•


  Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.





•


  Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations. §





•


  Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment. §





•


  PoE+ Powered: Supports DC (adapter is not included), 802.3at PoE+, and Passive PoE for flexible installations.





•


  Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.





•


  Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc. ) and abundant wireless security technologies






















Seamless Integration into Omada SDN

The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.













Always Stay Smooth with Fast Roaming

Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.













Ultra-Slim Design Brings More Agility

Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP613 perfectly blend into any modern office, hotel, classroom, or café.





















ХАРДУЕРНИ ХАРАКТЕРИСТИКИ

Интерфейс
1× Gigabit Ethernet (RJ-45) Port

Бутон
Reset

Захранване
802.3at PoE

48 V Passive PoE

12 V / 1 A DC (Power Adapter IS NOT included)

Консумирана енергия
11.0W (For PoE);

9.9W (For DC)

Размери (Ш x Д x В )
V2 and above: 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)

Тип антена
Internal Omni Antenna

2.4 GHz: 2× 4 dBi

5 GHz: 2× 5 dBi

Монтаж
Ceiling /Wall Mounting (Kits included)

Junction Box Mounting

БЕЗЖИЧНИ ХАРАКТЕРИСТИКИ

Безжични стандарти
IEEE 802.11ax/ac/n/g/b/a

Честотa
2.4 GHz and 5 GHz

Скорост на сигнала
5 GHz: Up to 1201 Mbps

2.4 GHz: Up to 574 Mbps

Безжични функции
1024-QAM

4× Longer OFDM Symbol

OFDMA

Multiple SSIDs (Up to 16 SSIDs, 8 for each band)

Enable/Disable Wireless Radio

Automatic Channel Assignment

Transmit Power Control (Adjust Transmit Power on dBm)

QoS(WMM)

MU-MIMO

Seamless Roaming  §

Omada Mesh §

Band Steering

Load Balance

Airtime Fairness

Beamforming

Rate Limit

Reboot Schedule

Wireless Schedule

Wireless Statistics based on SSID/AP/Client

Безжична сигурност
Captive Portal Authentication §

Access Control

Wireless Mac Address Filtering

Wireless Isolation Between Clients

SSID to VLAN Mapping

Rogue AP Detection

802.1X Support

WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Предавателна мощност
CE:
