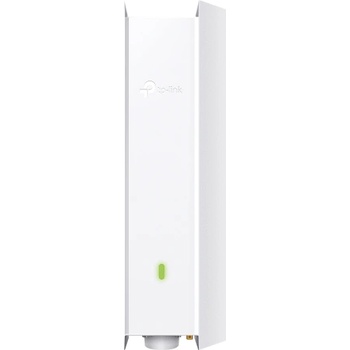

TP-Link EAP623-Outdoor

EAP623-Outdoor HD AX1800 Indoor/Outdoor Wi-Fi 6 Access Point

• Up to 1.8 Gbps WiFi 6 Speeds: 574 Mbps on 2.4 GHz + 1201 Mbps on 5 GHz.
• Supports WiFi 6 technologies, such as 1024-QAM and OFDMA, etc.
• High-density connectivity up to 1,000+ clients.
• Long-range coverage with the high-power amplifier and smart antennas.
• IP67 weatherproof enclosure for various outdoor environments.
• Advanced Functions: Centralized management,  Omada mesh, and seamless roaming.
• PoE+ Powered: Supports 802.3at PoE (adapter not included).



Long-Range, High-Speed WiFi 6

Professional antennas with high-power amplifiers utilize WiFi 6 technology to deliver robust and extensive wireless coverage.
Powered by the latest WiFi 6 technology, the AP delivers speeds of up to 1.8 Gbps.





Explore More with Smart Antennas

Equipped with horizontally polarized and vertically polarized antennas, EAP623-Outdoor HD’s intelligent algorithms automatically select the optimal antennas, bringing lower interference, longer coverage, and higher performance.





ХАРДУЕРНИ ХАРАКТЕРИСТИКИИнтерф ейс 1x Gigabit Ethernet PortБутон ResetЗахранване802.3at PoE
48V Passive PoE

Note: PoE adapter is not included. Размери (Ш x Д x В ) 11.0 x 4.2 x 2.2 in (280.4 × 106.5 × 56.8 mm)Тип антена 2× Internal Dual-Band Omni Antennas
2.4 GHz: 4.0 dBi;
5 GHz: 5.0 dBiWeatherproof Enclosure IP67Монтаж Ceiling / Wall Mounting (Kits Included)БЕЗЖИЧНИ ХАРАКТЕРИСТИКИConcurrent Clients 1,000+**Безжични стандарти IEEE 802.11 a/b/g/n/ac/axЧестотa 5 GHz, and 2.4 GHzСкорост на сигнала5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 MbpsБезжични функцииMesh
Seamless Roaming
Automatic Channel Assignment
Load Balance
Band Steering
Beamforming
Airtime Fairness
Multiple SSIDs:16 (8 for each band)
Wireless Statistics
Wireless Schedule
Reboot Schedule
RADIUS Accounting
MAC Authentication
Static IP/Dynamic IPБезжична сигурностVLAN
Access Control
Rogue AP Detection
Captive Portal Authentication
Maximum number of MAC Filter: 4,000
Wireless Isolation between Clients
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
802.1X SupportПредавателна мощностCE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP);
FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz)MANAGEMENTOmada App YesRestore & Backup YesFirmware update via Web YesNTP YesCentralized ManagementOmada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller
 Cloud Access Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller. Сигнали по електронна поща YesУправление Вкл/Изкл на LED YesУправление на контрола на достъпа по МАС адрес YesSNMP v1, v2c, v3SSH YesУеб-базирано управление Yes
