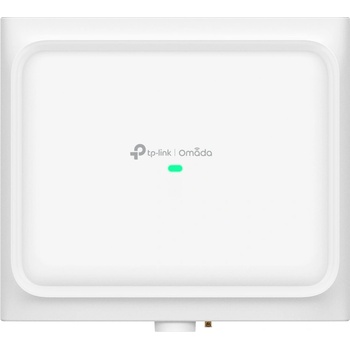

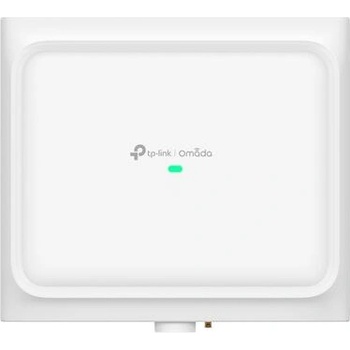

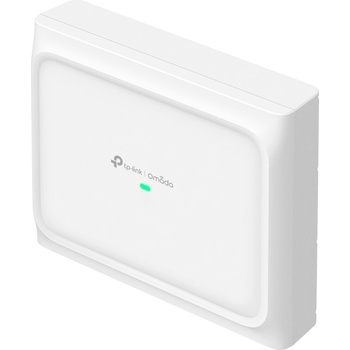

TP-Link EAP650 D120-Outdoor

AX3000 Indoor/Outdoor WiFi 6 Access Point

• Superior WiFi 6 Speeds: 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
• Directional Ultra-Range Coverage: Equipped with built-in high-gain directional antennas to deliver precise and extended coverage.
• Ideal for Warehouses and Outdoor Scenes: Features an IP68 waterproof enclosure with -30°C to +70°C operating range.
• 802.11k/v/r Seamless Roaming: Ensures uninterrupted connectivity for AGVs and handheld scanners.
• Flexible Deployment: Supports 802.3at PoE and Omada Mesh technology.
• Centralized Cloud Management: Control everything from a single interface anywhere via the Omada app or Web UI.

Designed for Warehouses

The EAP650 D120-Outdoor features a durable, fully sealed IP68 weatherproof enclosure, making it dustproof and capable of withstanding submersion in water. It is ideal for warehouse environments.





Directional Antennas for
Ultra-Range Coverage in Outdoor Scenarios

• 2.4 GHz up to

  787 ft /240 m*

• 5 GHz up to

  1640 ft /500 m*



C ategory SpecificationHA RDWARE FEATURES  Interface 1× Gigabit Ethernet Port (supports 802.3at PoE or 48V Passive PoE)Button ResetPower Supply802.3at PoE 48V Passive PoEMax. Power ConsumptionEU: 12.5W (802.3at PoE or Passive PoE) US: 14.7W (802.3at PoE or Passive PoE)Dimensions (W × D × H) 9.1 × 8.2 × 2.8 in (230 × 207.5 × 69.7 mm)Antenna Built-in Directional Antennas: 2.4 GHz: 2× 8 dBi 5 GHz: 2× 10 dBi Beamwidth: 120° Horizontal; 30° VerticalBluetooth YesWeatherproof Enclosure IP68Mounting Optional Brackets (sold separately): APM-110: Vertical ±180°, Horizontal ±45° APM-100: Vertical ±45°, Horizontal ±45°WIRELESS FEATURES  Coverage2.4 GHz: 200+ m* 5 GHz: 500+ m*Concurrent Clients 250+**Wireless Standards IEEE 802.11 a/b/g/n/ac/axFrequency 2.4 GHz, 5 GHzSignal Rate 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)†Wireless Functions1024-QAM DL/UL OFDMA Multiple SSIDs (Up to 16, 8 per band) Enable/Disable Wireless Radio Enable/Disable SSID Broadcast Guest Network Automatic Channel Assignment Transmit Power Control (in dBm) QoS (WMM) 2 × 2 (2.4 GHz & 5 GHz) DL/UL MU-MIMO Omada Mesh§ Seamless Roaming (802.11k/v/r)§ Band Steering Load Balance Airtime Fairness Beamforming RADIUS Accounting MAC Authentication Reboot Schedule Wireless Schedule Wireless Statistics Static IP/Dynamic IPWireless SecurityCaptive Portal Authentication§ Access Control Wireless MAC Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support WPA-Personal/Enterprise WPA2-Personal/Enterprise WPA3-Personal/EnterpriseTransmission PowerCE: < 20 dBm (2.4 GHz); < 23 dBm (5 GHz Band 1 & 2); < 30 dBm (5 GHz Band 3) FCC: < 30 dBm (2.4 GHz & 5 GHz)MANAGEMENT FEATURES  Omada App YesRestore & Backup YesNTP YesCentralized ManagementOmada Hardware Controller Omada Software Controller Omada Cloud-based Controller Omada APPCloud Access Yes (via any Omada Controller or App)Email Alerts YesLED ON/OFF Control YesManagement MAC Access Control YesSNMP v1, v2c, v3System Logging Local/Remote SyslogSSH YesWeb-based Management YesMulti-site Management YesZero-Touch Provisioning Yes (requires Omada Cloud-Based Controller)OTHERS  Certification CE, FCC, RoHSPackage ContentsAccess Point EAP650 D120-Outdoor Mounting Kits Installation GuideSystem Requirements Microsoft Windows XP/Vista/7/8/10/11, Linux
