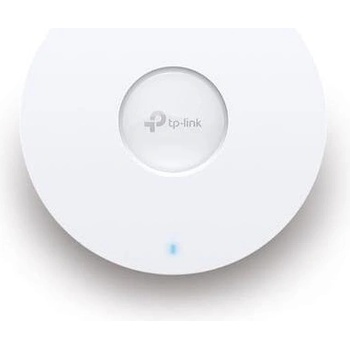

TP-Link EAP653 UR

EAP653 UR AX3000 Ceiling Mount WiFi 6 Access Point

• Ultra-fast WiFi 6 speeds: 2402 Mbps on 5 GHz t+ 574 Mbps on 2.4 GHz
• Ultra-range wireless coverage by more antennas with higher transmit power
• Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc
• Advanced Features: Omada Mesh, Seamless Roaming, etc
• PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)
• Ultra-Slim Design: Φ6.3 in × 1.3 in elegant design brings more agility
• Integrates with the Omada SDN platform for centralized management





Ultra-Range Wireless Coverage

More antennas with high transmission power offer robust and extensive wireless coverage. Always have full coverage for your office.





Ultra-Fast AX3000 WiFi 6 Speeds





Specifications:

HARDWARE FEATURESInterface 1× Gigabit PoE+ PortButton ResetPower Supply802.3at PoE
12V DC / 1.5 A (Power Adapter IS NOT included)
48V Passive PoE
 Power ConsumptionEU: 14.2 W
US: 15.5 WDimensions ( W x D x H ) 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)Antenna Type Internal Omni
2.4 GHz: 2× 5 dBi
5 GHz: 3× 5 dBiMountingCeiling /Wall Mounting (Kits included)
Junction Box MountingWIRELESS FEATURESCoverage 185 ㎡ (2000 ft2)Concurrent Clients 250+Wireless Standards IEEE 802.11ax/ac/n/g/b/aFrequency 2.4 GHz and 5 GHzSignal Rate5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 574 Mbps
 Wireless Functions1024-QAM
4× Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL)
HE160 (160 MHz Bandwidth)‡
Seamless Roaming(802.11k/v/r)§
Omada Mesh§
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/ClientWireless SecurityCaptive Portal Authentication§
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/EnterpriseTransmission PowerCE:
