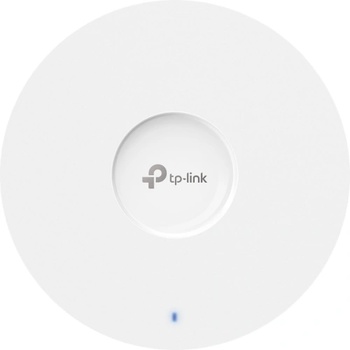

TP-Link EAP683 UR

EAP683 UR AX6000 Ceiling Mount WiFi 6 Access Point

• Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz†
• Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power.
• Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc. ‡
• Integrates with the Omada SDN platform for centralized management.
• Advanced Features: Omada Mesh, Seamless Roaming, and more. §
• PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included).









ХАРДУЕРНИ ХАРАКТЕРИСТИКИИнтерф ейс 1× 2.5 Gigabit PoE+ PortБутон ResetЗахранване802.3at PoE
12 V / 2 A DC

Note：Power adapter is not included. Консумирана енергияEU: 20.43W
US: 23.69W
 Размери (Ш x Д x В ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)Тип антена Internal Omni
2.4 GHz: 4× 4 dBi
5 GHz: 4× 5 dBiBluetooth YesМонтаж Ceiling /Wall Mounting (Kits included)БЕЗЖИЧНИ ХАРАКТЕРИСТИКИCoverage 185㎡(2000ft2)***Concurrent Clients 510+**Безжични стандарти IEEE 802.11ax/ac/n/g/b/aЧестотa 2.4 GHz and 5 GHzСкорост на сигнала5 GHz: Up to 4804 Mbps
2.4 GHz: Up to 1148 Mbps
 Безжични функции1024-QAM
4× Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
HE160 (160 MHz Bandwidth)‡
Seamless Roaming §
Omada Mesh§
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/ClientБезжична сигурностCaptive Portal Authentication§
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/EnterpriseПредават елна мощностCE:
