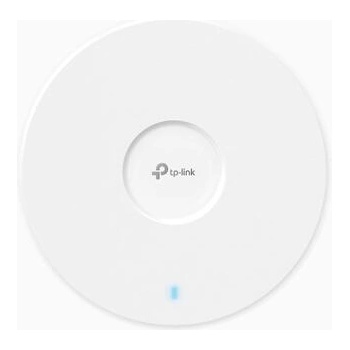

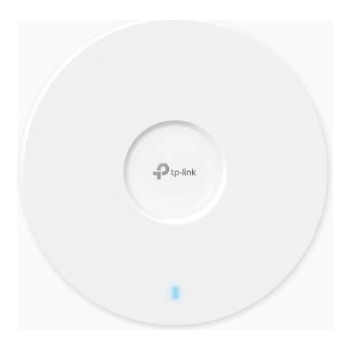

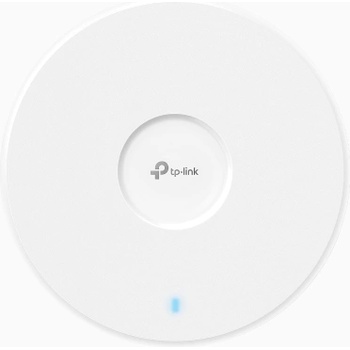

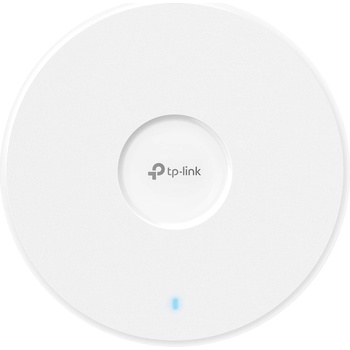

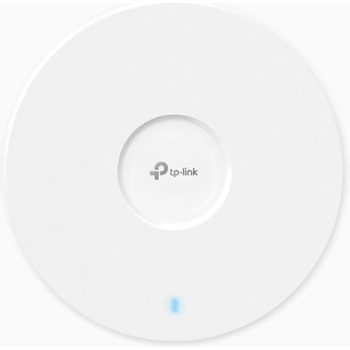

TP-Link EAP723

TP-Link Omada EAP723

BE3600 Ceiling Mount Wi-Fi 7 Access Point

• BE3600 Dual-Band Wi-Fi 7 (2882 Mbps on 5 GHz + 688 Mbps on 2.4 GHz).

• 1× 2.5G port unlocks the full potential of Wi-Fi 7.

• 160 MHz bandwidth enables many more simultaneous transmissions.

• Multi-RUs ensure the high performance of your network.

• Advanced Functions: Centralised management, Mesh, and Seamless Roaming.





Optimised Wired Performance with 2.5G PoE+ Port

With a 2.5 Gigabit Ethernet Port, EAP723 delivers remarkable multi-gigabit performance for higher bandwidth and faster Wi-Fi. Compatibility with 802.3at PoE is ideal for flexible deployment.





Seamless Integration into the Omada SDN

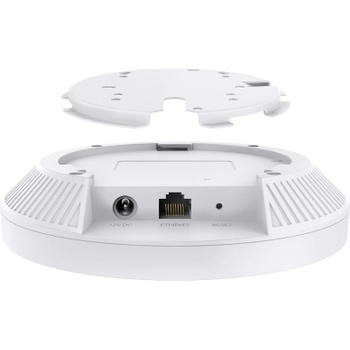

HARDWARE FEATURESInterface 1× 2.5G Ethernet PortButton ResetPower Supply 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included)Power Consumption18.6 W (For PoE);
16.0 W (For DC)Dimensions ( W x D x H ) 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm)Antenna Type2.4 GHz: 2× 4.0 dBi
5 GHz: 2× 5.0 dBi
 Mounting Ceiling / Wall Mounting (Kits Included)WIRELESS FEATURESCoverage 140㎡(1500 ft2)***Wireless Client Capacity 250+**Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/beFrequency 2.4 GHz and 5 GHzSignal Rate 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)Wireless Functions4K-QAM
Seamless Roaming
MU-MIMO
EHT160
Mesh
OFDMA
Load Balance
Band Steering
Beamforming
Airtime Fairness
Multiple SSIDS:16(8 on each band)
Wireless Schedule
Reboot Schedule
QoS(WMM)
Rate Limit
Static IP/Dynamic IP
RADIUS Accounting
MAC AuthenticationWireless SecurityCaptive Portal Authentication
Access Control
Maximum number of MAC Filter: 4,000
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/EnterpriseTransmission Power < 20 dBm (2.4 GHz, EIRP)
< 23 dBm (5 GHz, band 1&band 2, EIRP)
< 28 dBm (5 GHz, band 3, EIRP)

 MANAGEMENTOmada App YesCentralized ManagementOmada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
 Cloud Access Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller. Email Alerts YesLED ON/OFF Control YesManagement MAC Access Control YesSNMP v1, v2c, v3System Logging Local/Remote Syslog YesWeb-based Management Yes
