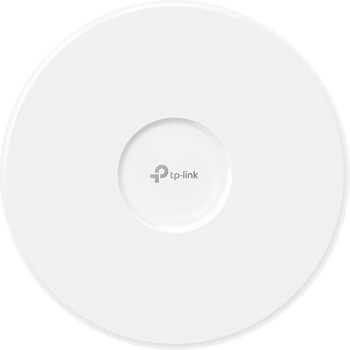

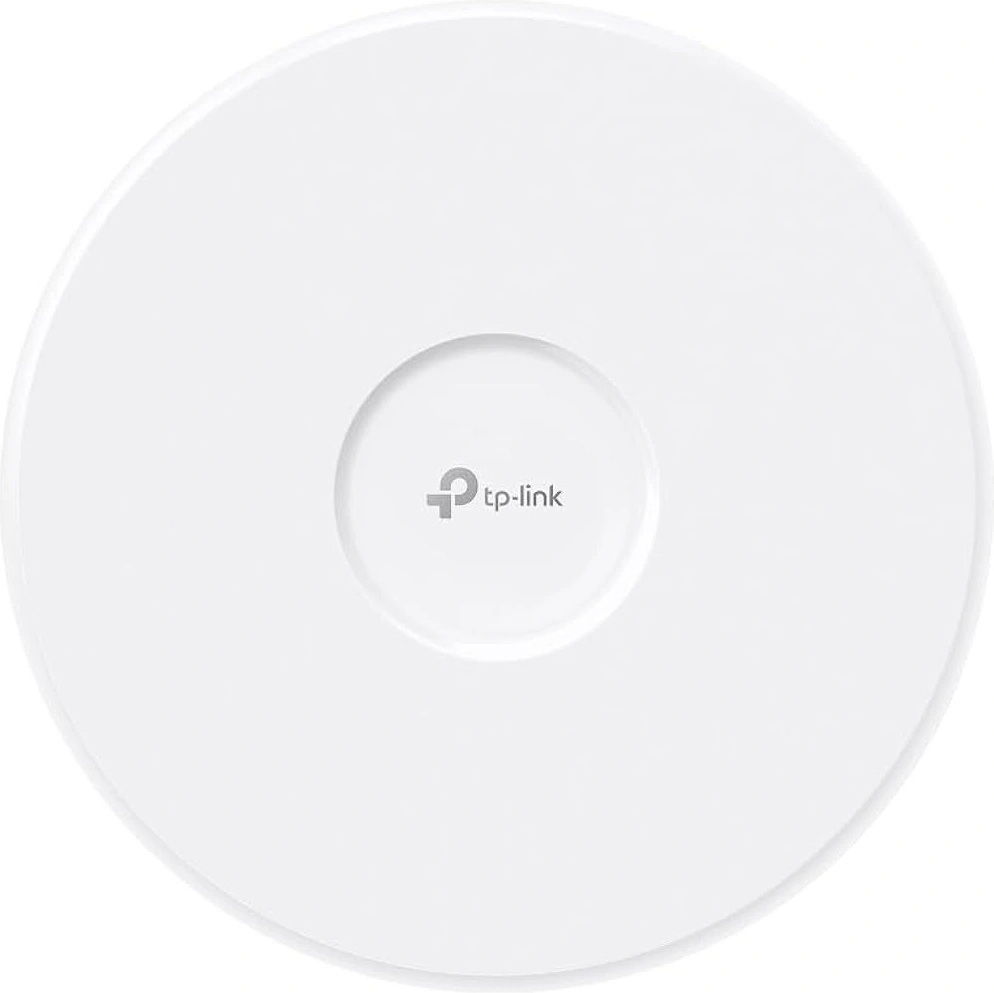

TP-Link EAP773

EAP773BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

• BE9300 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz).  Buffering will no longer be a problem.

• 1× 10G Port: Unlock the full potential of Wi-Fi 7.

• Clear 6 GHz Band: Brings cleaner and wider band resources to your Wi-Fi.

• 320 MHz Bandwidth: Up to 320 MHz bandwidth enables many more simultaneous transmissions at the fastest possible speeds.

• Low Latency and Interference:  Multi-Link Operation, and Multi-RUs ensure high performance of your network.

• Advanced Functions：Supports < /strong>centralized management, mesh, and AI roaming.



Supersized Throughput for Better Experiences

With the brand-new 6 GHz band open to applications, WiFi 7 supports extending channel width to 320 MHz. Compared to WiFi 6/6E, the doubled channel bandwidth of 6 GHz offers many more simultaneous transmissions at the fastest possible speeds.  Making full use of these new resources, the throughout of EAP773 reaches up to 9214 Mbps.





Optimized Wired Performance with 10G PoE Port

With a 10 Gigabit Ethernet Port, EAP773 delivers remarkable multi-gigabit performance for higher bandwidth and faster WiFi. Compatibility with 802.3at PoE is ideal for flexible deployment in large-scale scenes such as offices, schools, and hotels.





Seamless Integration into Omada SDN

The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface. Experience total control at your fingertips.





Specifications:

HARDWARE FEATURESInterface 1× 10G Ethernet PortButton ResetPower Supply 802.3bt PoE or 12V/2.5A DCPower Consumption Support Smart Power Comsuption Management
25.94 W (802.3bt, full functionality);
22.57 W (12/2.5A, full functionality);
23.4 W (802.3at decrease 6GHz Power);
10.1 W (802.3af, radio off, only main chip and LAN working)Dimensions ( W x D x H ) 8.7 × 8.7 × 1.3 in (220 × 220 × 32.5 mm)Antenna Type2.4 GHz: 2× 3.0 dBi
5 GHz: 2× 3.0 dBi
6 GHz: 2× 3.0 dBi
 Bluetooth 1 × 4.0 dBi, Bluetooth 5.2
*Firmware update may be required. Mounting Ceiling / Wall Mounting (Kits Included)WIRELESS FEATURESWireless Client Capacity 2 GHz: 128**
5 GHz: 128**
6 GHz: 128**Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/beFrequency 6 GHz, 5 GHz, and 2.4 GHzSignal Rate 574 Mbps (2.4 GHz) + 4320 Mbps (5 GHz) + 5760 Mbps (6 GHz)Wireless FunctionsMLO
4K-QAM
MU-MIMO
HE320
Mesh
BSS Coloring
OFDMA
Load Balance
Band Steering
Beamforming
Airtime Fairness
Multiple SSIDS:24(8 on each band)
Wireless Schedule
Reboot Schedule
QoS(WMM)
Rate Limit
Static IP/Dynamic IP
RADIUS Accounting
MAC AuthenticationWireless SecurityCaptive Portal Authentication
Access Control
Maximum number of MAC Filter: 4,000
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/EnterpriseTransmission Power < 25 dBm (2.4 GHz)
< 25 dBm (5 GHz)
< 23 dBm (6 GHz)MANAGEMENTOmada App YesCentralized ManagementOmada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
 Cloud Access Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller. Email Alerts YesLED ON/OFF Control YesManagement MAC Access Control YesSNMP v1, v2c, v3System Logging Local/Remote Syslog YesWeb-based Management Yes
