TP-Link EAP787

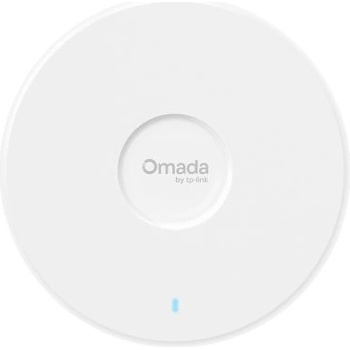

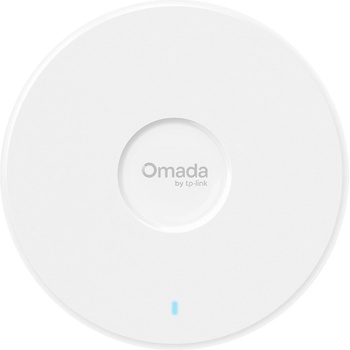

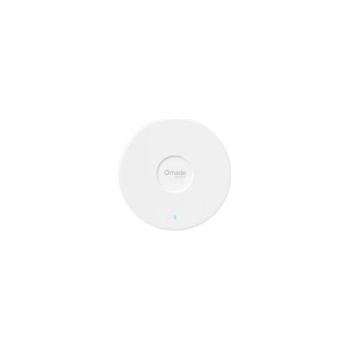

TP-Link Omada EAP787



BE15000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point

• Dedicated RF Scanning: Offers real-time spectrum monitoring and dynamic interference avoidance for robust wireless performance.

• Maximized 6 GHz Coverage with AFC: Unlock stronger signals and extended 6 GHz range performance

• Tri-B and 8-Stream Wi-Fi 7: 5765 Mbps on 6 GHz, 8648 Mbps on 5 GHz, and 688 Mbps on 2.4 GHz.

• 1× 10G Port: Ensures fast connectivity throughout the network
• Low Latency and Interference: 320MHz Bandwidth, Multi-Link Operation, Multi-RUs, and 4K-QAM ensure high performance for your network.
• Flexible Deployment and Easy Setup: Supports both 802.3bt PoE and DC power supply for flexible installation with Omada SDN for one-click setup.
• Advanced Features: Supports centralized management, Mesh, and Seamless Roaming.
• More Capacity and Wider Coverage: Supports 510+ concurrent clients** and covers up to 2050 ft2 (190 m2)* for reliable and extensive wireless connectivity.





Here’s your merged, clean, and professional single-table version of all the specs you provided — formatted in a standard product specification layout (ideal for documentation, datasheets, or product listings):

Product SpecificationsSpecifica tion DetailsInterfac e 1× 10G/2.5G Ethernet PortButton ResetPower Supply 802.3bt/at PoE or 12V/2.5A DCMax. Power Consumption29 W (For PoE) 24.5 W (For DC)Dimensions (W × D × H) 8.7 × 8.7 × 1.5 in (220 × 220 × 38.8 mm)Antenna2.4 GHz: 2 × 4.0 dBi 5 GHz: 4 × 5.0 dBi 6 GHz: 2 × 5.0 dBiBluetooth 1 × 5 dBi (peak gain), Internal antenna module Firmware update may be requiredMounting Ceiling / Wall / Junction Box Mounting (Kits Included)Coverage 2050 ft2 (190 m2)*Concurrent Clients 510+**Wireless Standards IEEE 802.11 a/b/g/n/ac/ax/beFrequency6 GHz, 5 GHz, and 2.4 GHzSignal Rate 688 Mbps (2.4 GHz) + 8648 Mbps (5 GHz) + 5765 Mbps (6 GHz)†Wireless Functions320 MHz Bandwidth‡ MLO‡ 4K-QAM‡ Multi-RUs‡ Seamless Roaming (802.11k/v/r) MU-MIMO‡ Mesh△ BSS Coloring‡ OFDMA‡ Load Balance Band Steering Beamforming Airtime Fairness Multiple SSIDs: 24 (8 on each band) Wireless Schedule Reboot Schedule QoS (WMM) Rate Limit Static IP/Dynamic IP RADIUS Accounting MAC AuthenticationWireless SecurityCaptive Portal Authentication△ Access Control MAC Filter Wireless Isolation Between Clients VLAN Rogue AP Detection WPA-Personal/Enterprise WPA2-Personal/Enterprise WPA3-Personal/EnterpriseTransmis sion Power4–25 dBm (2.4 GHz) 7–29 dBm (5 GHz, U-NII-1 & U-NII-3) 7–26 dBm (5 GHz, U-NII-2A) 7–24 dBm (5 GHz, U-NII-2C) 4–23 dBm (6 GHz)Omada App YesCentralized ManagementOmada Central (Cloud-Based) Omada Hardware Controller Omada Software ControllerCloud Access Yes (requires Omada controller)Email Alerts YesLED ON/OFF Control YesManagement MAC Access Control YesSNMP v1, v2c, v3System Logging (Local/Remote Syslog) YesWeb-based Management Yes
