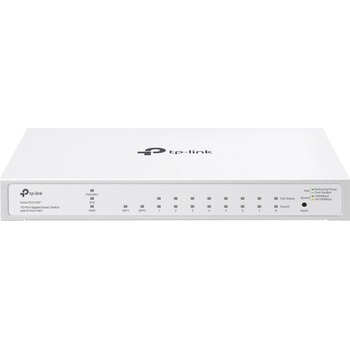

TP-Link FESTA FS310GP

Festa FS310GP 10-Port Gigabit Smart Switch with 8-Port PoE+

• 8× Gigabit 802.3af/at PoE+ ports and 2× Gigabit SFP slots
• 61 W total PoE budget with up to 30 W PoE output per port*
• Complete business-class Festa Ecosystem with consumer-inspired simplicity
• Free cloud centralized management via the Festa app or the web†
• Easy setup and use
• Zero-Touch Provisioning (ZTP) and Self-Organizing Network (SON)
• Static Routing, VLAN, ACL, and IGMP Snooping
• Fanless design for silent operation
• Elegant metal casing and desktop/wall mounting design

  An Easy-to-Use
Managed PoE Switch,
No IT Required









Festa 一 A Networking Solution Built For Small Business, No IT Required

Festa offers business-class features with consumer-inspired simplicity. Our free cloud-based centralized management is accessible via the Festa app or web, providing essential features for small businesses without the complexity required by larger-scale operations.









HARDWARE FEATURESInterface8× 10/100/1000Mbps PoE+ RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
2× 100/1000 Mbps SFP SlotsFan Quantity FanlessPhysical Security Lock √Power Supply External Power Adapter (Output: 53.5VDC/1.31A)PoE Ports (RJ45)Standard: 802.3af/at compliant
PoE Ports: 8 Ports
Power Supply: 61 W*Dimensions ( W x D x H ) 8.2×4.9×1.0 in (209×126×26 mm)Mounting Desktop / Wall-MountingPERFORMANCESwitching Capacity 20 GbpsPacket Forwarding Rate 14.88 MppsMAC Address Table 8KPacket Buffer Memory 4.1 MbitJumbo Frame 9 KBSOFTWARE FEATURESL2 and L2+ Features16 IP Interfaces: Support IPv4/IPv6 Interface
Static Routing: 32 IPv4/IPv6 Static Routes
DHCP Server
DHCP Relay
DHCP L2 Relay
Spanning Tree
Loopback Detection
Flow Control
802.1ab LLDP/ LLDP-MEDAdvanced FeaturesIGMP Snooping
Rate Limit
Storm Control
Port IsolationIPv6 Support √VLAN √Access Control ListTime-Range
- Time Slice
- Week Time-Range
- Absolute Time-Range
Combined ACL
- Source MAC(Subnet Mask)
- Destination MAC(Subnet Mask)
- VLAN ID
- EtherType
- Source IP(Subnet Mask)
- Destination IP(Subnet Mask)
- IP Protocol
- TCP/UDP Source Port
- TCP/UDP Destination Port
IPv6 ACL
Rule Operation
- Permit/Deny
Binding
- Port Binding
- VLAN BindingLink Aggregation √MANAGEMENTCentralized ManagementFesta App
Festa Web PortalCloud Access Free Cloud AccessManagement FeaturesZero-Touch Provisioning (ZTP)
Self-Organizing Network (SON)
Auto Topology
Multi-site Management
Remote Maintenance
Batch Firmware Upgrading
Batch Configuration
Integrated Troubleshooting Tools
Monitor Network Status
Access Condition Logs and AlertsOTHERSCertification CE, FCC, RoHSSystem Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
