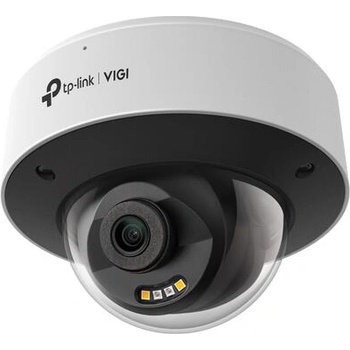

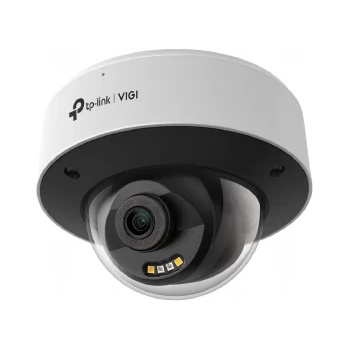

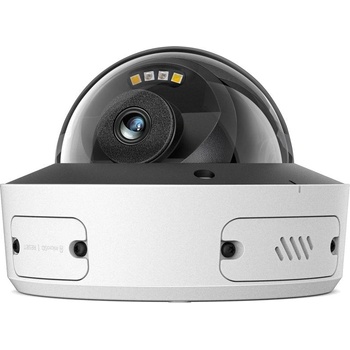

TP-Link INSIGHT S245(4MM)

InSight S245

VIGI 4MP Full-Color Dome Network Camera

• 4MP Super-High Definition and 24h Full-Color
• People & Vehicle Analytics†
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Active Defense and Two-Way Audio
• IP67 Waterproof and IK10 Vandal-Proof
• H. 265+ Compression Technology





People & Vehicle Analytics

Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.



Human & Vehicle Classification

Distinguis h humans and vehicles from other objects and receive more accurate event notifications.





Specifications:

Category SpecificationCa mera  Image Sensor 1/2.7 Progressive Scan CMOSShutter Speed 1/3 to 1/10000 sSlow Shutter YesMinimum Illumination 0.005 Lux; 0 Lux with IR/White lightDay/Night Mechanism IR Cut FilterDay/Night Switch Unified / Scheduled / AutoLens  Type Fixed Focal LensFocal Length 4 mmAperture F1.6FOV 4 mm: H: 88°, V: 46°, D: 105.4°Lens Mount M12*P 0.5DORI Distance 4 mm: D: 80 m, O: 33 m, R: 16 m, I: 8 mAngle Adjustment Pan: 0–346°, Tilt: 0–75°, Rotation: 0–355°Illuminator  IR LED Qty: 2, Range: 30 m, Wavelength: 850 nmWhite LED Qty: 2, Range: 30 mIlluminator Control Auto / Scheduled / Always On / Always OffVideo  Max. Resolution 2688 x 1520Main Stream 50Hz: 1–25 fps, 60Hz: 1–30 fpsResolutions: 2688x1520 to 1280x720Note: Max 20 fps if rotated 90°/270°Sub-Stream 50Hz: 1–25 fps, 60Hz: 1–30 fpsResolutions: 848x480 to 320x240Note: Max 20 fps if rotated 90°/270°Bit Rate Control CBR, VBRCompression Main: H. 265+/H. 265/H. 264+/H. 264Sub: H. 265/H. 264H. 264 Type High ProfileH. 265 Type Main ProfileVideo Bit Rate Main: 256 Kbps – 6 MbpsSub: 64 Kbps – 512 KbpsImage  Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, WB, IR Overexposure Prevention, HLC (via software)Enhancement BLC, 3D DNR, HLC, Smart IRWide Dynamic Range 120 dB (Note: DWDR only with People/Vehicle Analytics enabled)SNR ≥ 52 dBImage Parameters Switch YesPrivacy Mask Up to 4 MasksROI 1 RegionOSD Setting YesAudio  Audio Communication Two-Way AudioAudio Input / Output Yes / YesCompression YesSampling Rate 8 KHzNoise Filtering YesAudio Bit Rate 64 Kbps (G. 711 alaw)Network  Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4/6, ARPONVIF YesAPI ONVIF Profile S/T/GLive View 3 Main + 3 Sub StreamsClient VIGI App, Web UI, VIGI VMS, UtilityBrowsers Chrome ≥ 57, Firefox ≥ 52, Safari ≥ 11, Edge ≥ 91Cloud YesSecurity Password, HTTPS, IP Filter, Digest AuthAlarm & Events  Smart Events Intrusion, Line-Crossing, Region Enter/Exit, Abandoned/Removed Object, Loitering, People/Vehicle Detection, Abnormal Sound, Scene ChangeBasic Events Motion (Human/Vehicle Classification), Tampering, Illegal LoginAlarm Linkage Recording, Push Notification, Audible Warning, Light FlashOutput Notification Message PushDeep Learning Analytics People & Vehicle Attribute-Based SearchInterfaces  Network Interface 1× RJ45 (10/100M, PoE)Reset Button YesPower DC Power PortStorage MicroSD up to 512 GBBuilt-in Mic/Speaker Yes / YesAudio Interface N/AGeneral  Operating Temperature -30–60 °CStorage Temperature -40–60 °COperating/Storage Humidity ≤ 95% (Non-Condensing)Package Content Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting AccessoriesMaterial MetalNet Weight 0.62 kgPower Supply 12V DC ±5%, Max. 10.54 W, 5.5 mm plugPoE: 802.3af/at, Max. 12.52 WProtection IP67 (Waterproof), IK10 (Vandal Proof)
