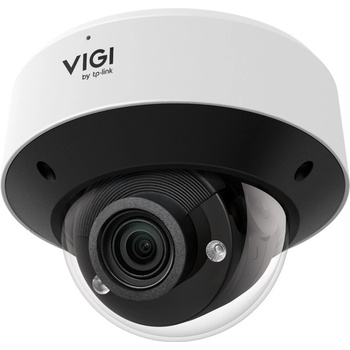

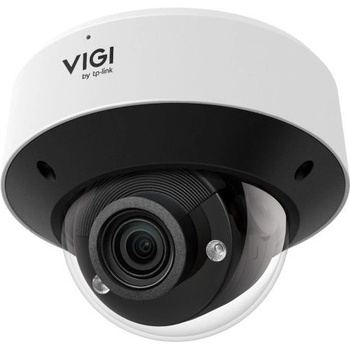

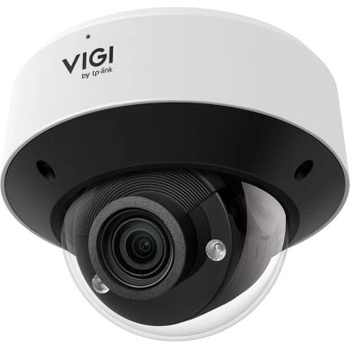

TP-Link INSIGHT S245ZI

TP-Link VIGI InSight S245ZI



VIGI 4MP IR Motorized Varifocal Dome Network Camera

• 5X Optical Zoom for Easy Installation and Monitoring
• 4MP Super-High Definition and IR Range Up to 197 ft (60 m)*1
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Audio and Alarm Interface Available
• IP67 Weatherproof and IK10 Vandal Proof
• H. 265+ Compression Technology



Motorized Varifocal

By adjusting the field of view (FOV), this feature assists you in concentrating on areas of interest, minimizing invalid detection zones, and enhancing target clarity.





Human & Vehicle Classification

Distinguis h humans and vehicles from other objects and receive more accurate event notifications.





CategorySpecificationК амера  Sensor Type 1/2.9 Progressive Scan CMOSShutter Speed 1/3 to 1/10000 sSlow Shutter YesMinimum Illumination 0.005 Lux; 0 Lux with IR LightDay/Night Mechanism IR Cut FilterDay/Night Switch Unified / Scheduled / AutoLENS  Type Motorized Varifocal LensFocal Length 2.7-13.5 mm (5X Optical Zoom)Aperture F1.6FOV Horizontal: 29.6°-102.0°; Vertical: 16.8°-53.8°; Diagonal: 34.1°-122.8°Lens Mount Φ14DORI Distance Detect: 62-200 m; Observe: 27-84 m; Recognize: 13-40 m; Identify: 7-21 mAngle Adjustment (Manual) Pan: 0° to 350°; Tilt: 0° to 75°; Rotate: 0° to 344°ILLUMINATOR  IR LED Quantity: 4; Range: 60 m; Wavelength: 850 nmIlluminator Control Auto / Scheduled / Always on / Always offVIDEO  Max Resolution 2688x1520Main Stream Frame Rate 50Hz: 1/5/10/15/20/25 fps; 60Hz: 1/5/10/15/20/25/30 fpsMain Stream Resolution 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080Sub-Stream Frame Rate 50Hz: 1/5/10/15/20/25 fps; 60Hz: 1/5/10/15/20/25/30 fpsSub-Stream Resolution 1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240Frame Rate Note If rotation is 90° or 270°, max frame rate is 20fpsBit Rate Control CBR, VBRVideo Compression Main: H. 265+/H. 265/H. 264+/H. 264; Sub: H. 265/H. 264H. 264 Type High ProfileH. 264+ Supported (Main Stream)H. 265 Type Main ProfileH. 265+ Supported (Main Stream)Video Bit Rate Main: 256 Kbps to 6 Mbps; Sub: 64 Kbps to 1024 KbpsImage  Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Infrared Protection, HLCEnhancement BLC, 3D DNR, HLC, SmartIRWide Dynamic Range (WDR) 120 dBSignal-to-Noise Ratio (SNR) ≥ 52 dBImage Parameter Switch YesPrivacy Mask Up to 4 MasksROI 1 RegionOSD Setting YesАУДИО  Audio Communication Two-Way AudioAudio Input YesAudio Output YesAudio Compression YesAudio Sampling Rate 8 KHzNoise Filtering YesAudio Bit Rate 64 Kbps (G. 711 alaw)МРЕЖА  Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARPONVIF YesAPI Open Network Video Interface (Profile S/T/G)Simultaneous Live View 3 Main Streams & 3 Sub-StreamsClient Software VIGI App, Web UI, VIGI VMS, VIGI Cloud VMSWeb Browser Support Chrome 57+, Firefox 52+, Safari 11+, Edge 91+Cloud YesSecurity Password Protection, HTTPS Encryption, IP Filter, Digest AuthenticationУПРАВЛЕНИ Е НА АЛАРМИТЕ И СЪБИТИЯТА  Smart Events Intrusion, Line-Crossing, Region Entering/Exiting, Object Abandoned/Removal, Loitering, People, Vehicle, Abnormal Sound, Scene ChangeBasic Events Motion Detection (Human & Vehicle Classification), Video Tampering, Illegal Login, Alarm InputAlarm Linkage Memory Card Recording, Push Notifications, Active Defence Sound, Email Alarm, FTP Upload, Alarm Output, Alarm ServerИНТЕРФЕЙСИ Netw ork Interface 1 RJ45 10/100M Ethernet Port, PoEAlarm Interface 1 Alarm In, 1 Alarm OutReset Button YesPower DC Power PortStorage Built-in microSD Slot, up to 512 GBBuilt-in Microphone Yes, records within 5 m radiusBuilt-in Speaker N/AAudio Ports 1 Audio In, 1 Audio OutОБЩИ ХАРАКТЕРИСТИКИ  Operating Temperature -30°C to 60°CStorage Temperature -40°C to 60°COperating Humidity ≤ 95% (Non-Condensing)Storage Humidity ≤ 95% (Non-Condensing)Package Contents VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting AccessoriesMaterial MetalNet Weight 0.775 KgPower Supply 12V DC ±5%, Max 10.8W, 5.5 mm Coaxial Power Plug; PoE 802.3af/at, class 0, Max 12WProtection IP67 Weatherproof, IK10 Vandal ProofDimensions (L×W×H) Φ5.1 × 4.0 in (Φ129.9 × 102.5 mm)
