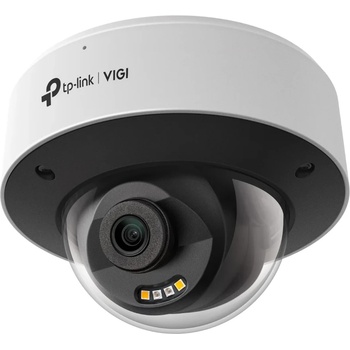

TP-Link INSIGHT S285(2.8MM)

InSight S285

VIGI 8MP Full-Color Dome Network Camera

• 8MP Super-High Definition and 24h Full-Color
• People & Vehicle Analytics§
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Active Defense and Two-Way Audio
• IP67 Waterproof and IK10 Vandal Proof
• H. 265+ Compression Technology



People & Vehicle Analytics

Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.





Human & Vehicle Classification

Distinguis h humans and vehicles from other objects and receive more accurate event notifications.



Category SpecificationCA MERA  Image Sensor 1/2.7 Progressive Scan CMOSShutter Speed 1/3 to 1/10000 sSlow Shutter YesMinimum Illumination 0.005 Lux; 0 Lux with IR/White lightDay/Night Mechanism IR Cut FilterDay/Night Switch Unified / Scheduled / AutoLENS  Type Fixed Focal LensFocal Length 2.8 mmAperture F1.6FOV (2.8 mm) H: 110°, V: 58.1°, D: 133.5°Lens Mount M12*P 0.5DORI Distance (2.8 mm) Detect: 85 m, Observe: 35 m, Recognize: 17 m, Identify: 8 mAngle Adjustment Pan: 0–346°, Tilt: 0–75°, Rotation: 0–355°ILLUMINATOR  IR LED 2 pcs, 30 m range, 850 nmWhite LED 2 pcs, 30 m rangeIlluminator Control Auto / Scheduled / Always on / Always offVIDEO  Max. Resolution 3840 x 2160Main Stream Frame Rates 1–25 fps (50Hz), 1–25 fps (60Hz); up to 20 fps if rotated or HDR enabledMain Stream Resolutions 3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720Sub-Stream Frame Rates Same as main streamSub-Stream Resolutions 848×480, 704×576, 640×480, 640×360, 352×288, 320×240Bit Rate Control CBR, VBRVideo Compression Main: H. 265+/H. 265/H. 264+/H. 264; Sub: H. 265/H. 264H. 264 Type High ProfileH. 264+ / H. 265+ Supported (Main Stream)Video Bit Rate Main: 256 Kbps – 8 Mbps; Sub: 64 Kbps – 512 KbpsIMAGE  Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Infrared Overexposure, HLCImage Enhancement BLC, 3D DNR, HLC, Smart IRWide Dynamic Range 120 dB (DWDR only if analytics enabled)SNR ≥ 52 dBImage Parameters Switch YesPrivacy Mask Up to 4 masksROI 1 regionOSD Setting YesAUDIO  Audio Communication Two-Way AudioAudio Input/Output YesAudio Compression YesAudio Sampling Rate 8 KHzNoise Filtering YesAudio Bit Rate 64 Kbps (G. 711 alaw)NETWORK  Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4/IPv6, ARPONVIF YesAPI ONVIF Profile S/T/GLive View 3 Main Streams + 3 Sub-StreamsClients VIGI App, Web UI, VIGI VMS, UtilityBrowser Support Chrome 57+, Firefox 52+, Safari 11+, Edge 91+Cloud Support YesSecurity Password, HTTPS, IP Filter, Digest AuthALARM & EVENTS  Smart Events Intrusion, Line-Crossing, Region Enter/Exit, Abandoned/Removed Object, Loitering, People, Vehicle, Abnormal Sound, Scene ChangeBasic Events Motion Detection (Enhanced), Tampering, ExceptionAlarm Linkage SD Recording, Message Push, Audible Warning, White Light FlashingOutput Notification Message PushDeep Learning People & Vehicle AnalyticsINTERFACES  Network 1× RJ45 10/100M Ethernet, PoEAlarm N/AReset Button YesPower Port DC InputOn-board Storage MicroSD (up to 512 GB)Microphone Built-in, 5 m rangeSpeaker Built-inAudio Terminal N/AGENERAL  Operating Temp -30 to 60 °CStorage Temp -40 to 60 °CHumidity (Op/Storage) ≤ 95% (non-condensing)Package Contents Camera, Quick Start Guide, Waterproof Cable, Mounting KitMaterial MetalNet Weight 0.62 kgPower Supply 12V DC ±5% (11 W), PoE (12.3 W, 802.3af/at, class 0)Protection IP67, IK10Dimensions 122 × 122 × 89 mm (4.80 × 4.80 × 3.50 in)
