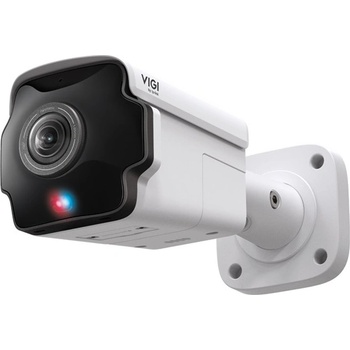

TP-Link INSIGHT S385PI

TP-Link VIGI InSight S385PI



VIGI 8MP Outdoor IR Panoramic Bullet Network Camera

• 180° Panorama View with Huge Vision
• 4K (8MP) Ultra HD and IR Range Up to 65.62 ft (20 m)*1
• Red-Blue Warning Lights with Stronger Deterrence
• People & Vehicle Analytics*2
• Human & Vehicle Classification
• Smart Detection
• Smart Video Enhancement Technology
• Audio and Alarm Interface Available
• IP67 Weatherproof and IK10 Vandal Proof
• H. 265+ Compression Technology





Powerful, Efficient Monitoring with Active Defense

Active Defense is a monitoring feature that uses deep learning algorithms or external alarm devices to trigger flashing lights and loud sounds in real time, deterring intruders.  It also supports user-created custom voice audio.



Category SpecificationCA MERA  Image Sensor 1/2.7 Progressive Scan CMOSShutter Speed 1/3 to 1/10000 sSlow Shutter YesMinimum Illumination 0.005 Lux; 0 Lux with IR LightDay/Night Mechanism IR Cut FilterDay/Night Switch Unified / Scheduled / AutoLENS  Type Fixed Focal LensFocal Length 1.65 mmAperture F2.0FOV Horizontal: 180°; Vertical: 86°; Diagonal: 180°Lens Mount M12DORI Distance (1.65 mm) D: 44 m; O: 18.33 m; R: 8.8 m; I: 4.4 mAngle Adjustment Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°ILLUMINATOR  IR LED Quantity: 4; Range: 20 m; Wavelength: 850 nmIlluminator Control Auto / Scheduled / Always On / Always OffVIDEO  Max. Resolution 3840 × 2160Main Stream Frame Rate 50Hz: 1–25fps; 60Hz: 1–30fps (max 20fps if image rotation is 90°/270°)Main Stream Resolutions 3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720Sub-Stream Frame Rate 50Hz: 1–25fps; 60Hz: 1–30fps (max 20fps if image rotation is 90°/270°)Sub-Stream Resolutions 848×480, 704×576, 640×480, 640×360, 352×288, 320×240Bit Rate Control CBR, VBRVideo Compression Main: H. 265+/H. 265/H. 264+/H. 264; Sub: H. 265/H. 264H. 264 Type High ProfileH. 264+ Main Stream SupportedH. 265 Type Main ProfileH. 265+ Main Stream SupportedVideo Bit Rate Main: 256 Kbps–8 Mbps; Sub: 64 Kbps–1024 KbpsIMAGE  Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent IR Overexposure, HLC (via client)Image Enhancement BLC, 3D DNR, HLC, SmartIRWide Dynamic Range 120 dBSNR ≥ 52 dBImage Parameter Switch YesPrivacy Mask Up to 4 MasksROI 4 RegionsOSD Setting YesAUDIO  Audio Communication Two-Way AudioAudio Input Built-in MicrophoneAudio Output Built-in SpeakerAudio Compression YesAudio Sampling Rate 8 KHzEnvironment Noise Filter YesAudio Bit Rate 64 Kbps (G. 711 alaw)NETWORK  Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4/IPv6, ARPONVIF YesAPI ONVIF Profile S/T/GLive View Streams 3 Main + 3 SubClient Software VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMSWeb Browsers Supported Chrome 57+, Firefox 52+, Safari 11+, Edge 91+Cloud YesSecurity Features Password Protection, HTTPS, IP Filter, Digest AuthenticationALARM & EVENT MGMT  Smart Events Intrusion, Line-Crossing, Region Entering/Exiting, Object Abandonment/Removal, Loitering, People, Vehicle, Sound, Scene ChangeBasic Events Motion (Human/Vehicle classification), Tampering, Exception (Illegal Login), Alarm InputAlarm Linkage SD Recording, FTP Upload, Alarm Output, Push Notifications, Alarm Server, Sound/Light Alarm, Email AlarmDeep Learning Analytics People/Vehicle Search by AttributeINTERFACES  Network 1× RJ45 10/100M Ethernet, PoEAlarm 1 In, 1 OutRed-Blue Warning Lights YesReset Button YesPower Port DCOn-Board Storage MicroSD Slot (up to 512 GB)Built-in Mic Yes (5 m radius coverage)Built-in Speaker YesAudio Ports 1 In, 1 OutGENERAL  Operating Temperature -30°C to 60°CStorage Temperature -40°C to 60°COperating Humidity ≤ 95% (Non-Condensing)Storage Humidity ≤ 95% (Non-Condensing)Material MetalNet Weight 1.01 kgPower Supply 12V DC ± 5% (Max 18W), PoE 802.3at Class 4 (Max 21W)Protection IP67 Weatherproof, IK10 Vandal ProofDimensions (L×W×H) 266 × 100 × 101 mm (10.5 × 3.9 × 4 in)
