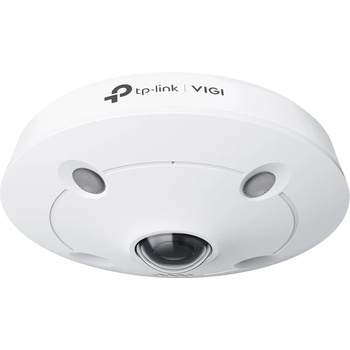

TP-Link INSIGHT S655I

TP-Link VIGI InSight S655I

VIGI 5MP IR Fisheye Network Camera

• 5MP Super-High Definition and IR Night Vision
• 360° Coverage without Blind Spots
• Supports Multiple Display Modes△ and ePTZ
• Supports Ceiling Mount / Wall Mount / Pendant Mount§
• Smart Detection
• Smart Video Enhancement Technology
• Built-In Microphone & Speaker
• IP67 Waterproof and IK10 Vandal-Proof
• H. 265+ Compression Technology
• Suitable for Indoor Wide Areas like Retail Shops and Offices

360° Coverage with 4-in-1 Cameras

A single fisheye camera can play the role of many, providing a simpler and more competitive security solution. For example, in 4PTZ display mode, it functions as four cameras at once, delivering complete coverage and flexible perspectives.



Multiple Display Modes

Along with the fisheye view, VIGI provides multiple display modes, enabling you to focus on every detail exactly as you prefer.





CategorySpecificationCA MERA  Image Sensor 1/2.7 Progressive Scan CMOSShutter Speed 1/3 to 1/10000 sSlow Shutter YesMinimum Illumination Color: 0.01 Lux; 0 Lux with IR lightDay/Night Mechanism IR Cut FilterDay/Night Switch Unified / Scheduled / AutoLENS  Type Fixed Focal LensFocal Length 1.44 mmAperture F2.0Field of View (FOV) H: 180°, V: 180°, D: 180°Lens Mount M12*P0.5DORI Distance Detect: 28.8 m, Observe: 12 m, Recognize: 5.7 m, Identify: 2.8 mFisheye Display  Installation Ceiling Mount, Wall Mount, Pendant MountDisplay Mode See detailed breakdown below (varies by mount type)Angle Adjustment N/AILLUMINATOR  IR LED 4 pcs, 30 m range, 850 nm wavelengthWhite LED N/AIlluminator Control Auto / Scheduled / Always On / Always OffVIDEO  Max. Resolution 2560 × 1920Main Stream 50Hz: 1-25fps; 60Hz: 1-30fps. Resolutions: 2560×1920, 2256×1696, 2048×1536, 1280×960Sub-Stream 50Hz/60Hz: 1-30fps. Resolutions: 640×480, 320×240Bit Rate Control CBR, VBRCompression Main: H. 265+/H. 265/H. 264+/H. 264; Sub: H. 265/H. 264Profiles H. 264: High; H. 265: MainVideo Bit Rate Main: 256 Kbps–6 Mbps; Sub: 64 Kbps–512 KbpsIMAGE  Image Settings Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, WB, IR Overexposure Prevention, HLC (via client)Enhancement BLC, 3D DNR, HLC, SmartIRWDR 120 dBSNR ≥ 52 dBImage Parameter Switch YesPrivacy Mask Up to 4 MasksROI 1 RegionOSD YesAUDIO  Audio Communication Two-Way AudioAudio Input YesAudio Output YesCompression YesSampling Rate 8 KHzNoise Filtering YesBit Rate 64 Kbps (G. 711 alaw)NETWORK  Protocols TCP/IP, UDP, ICMP, HTTP(S), DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4/IPv6, ARPONVIF YesAPI ONVIF Profiles S/T/GSimultaneous Streams 3 Main + 3 SubClient Utility, VIGI App, Web UI, VIGI VMS, VIGI Cloud VMSWeb Browser Support Chrome 57+, Firefox 52+, Safari 11+, Edge 91+Cloud YesSecurity Password, HTTPS, IP Filter, Digest AuthALARM & EVENTS  Smart Events Intrusion, Line-Crossing, Region Enter/Exit, Abnormal SoundBasic Events Motion, Tampering, Exception (Illegal Login)Alarm Linkage SD Recording, Message Push, Audible WarningOutput Notification Message Push, Email, FTP UploadINTERFACES  Network Port 1 × RJ45 10/100M Ethernet, PoEAlarm N/AReset Button YesPower Port DC InputLocal Storage MicroSD up to 512 GBMicrophone Built-in, 5 m radiusSpeaker Built-inAudio I/O N/AGENERAL  Operating Temp. -30 to 60 °CStorage Temp. -40 to 60 °COperating Humidity ≤ 95% (Non-Condensing)Storage Humidity ≤ 95% (Non-Condensing)Package Content Camera, QSG, Waterproof Attachments, Mount KitMaterial MetalWeight 0.44 kg (without accessories), 0.48 kg (with accessories)Power Supply 12V DC ±5%, Max. 11.76 W (5.5mm Plug); PoE (802.3af/at, class 0), Max. 12.14 WProtection IP67, IK10Dimensions 132 × 132 × 56 mm (5.2 × 5.2 × 2.2 in)

Fisheye Display Modes (Summary):

• Ceilin g Mount: Fisheye, AR Dewarp, 180°/360° Panorama, Cylinder, 2PTZ, 4PTZ, Fisheye + 8PTZ/3PTZ, 360 Panorama + 8/6/PTZ
• Wall Mount: Fisheye, 360 Unwrap + 3/8PTZ, 4PTZ, Fisheye + 3/8PTZ
