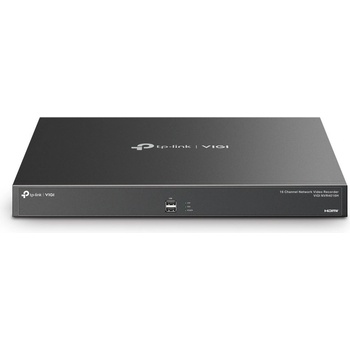

TP-Link IP видеорекордер TP-Link VIGI NVR4016H, 16 канала, H. 265+/H. 265/H. 264+/H. 264, 4x SATA (до 16TB), 1x USB 3.0, 2x USB 2.0, 2x RJ-45, 2x HDMI, 1x VGA (VIGI NVR4016H)

TP-Link VIGI NVR4016H



VIGI 16 Channel Network Video Recorder

• 16-Channel Live View and 4K HDMI Video Output
• Up to 10-ch @ 3MP (25fps) / 16-ch @ 1080P (25fps) Decoding Capability
• 16-Channel Synchronous Playback†
• 320 Mbps Incoming Bandwidth and 320 Mbps Outgoing Bandwidth
• 4× SATA Interfaces and 1 Up to 16 TB*
• H. 265+ Compression Technology
• 2 HDMI and 1 VGA Video Output
• Remote Monitoring







Category SpecificationVideo and Audio  IP Video Input 16-ChannelIncoming Bandwidth 320 MbpsOutgoing Bandwidth 320 MbpsHDMI Output Resolution 2 Channels HDMI1: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz HDMI2: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60HzVGA Output Resolution 1 Channel: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60HzVideo Output ModeHDMI1/HDMI2 Independent Output HDMI1/VGA Independent Output Note: HDMI2 and VGA cannot operate simultaneously. HDMI2 takes precedence. Multi-View Display 1, 4, 6, 8, 9, 16Decoding  Audio Compression G. 711A / G. 711U / G. 726Video Compression H. 265+ / H. 265 / H. 264+ / H. 264Record Resolution 8MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIFSynchronous Playback 16-ChannelCapability25fps: 10-ch@3MP, 16-ch@1080P 30fps: 4-ch@8MP, 6-ch@5MP, 8-ch@4MPRecord Management  Record Mode Manual, Scheduling, Motion Detection RecordingPlayback Mode Instant, Regular, Tag, Event PlaybackBackup Mode Regular Backup, Video Clip BackupPlayback Function Play, Pause, Stop, Fast Forward, Fast Backward, Play by Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/OffNetwork  Protocols UPnP, NTP, SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARPMobile Phone Access Android, iOSWeb Browser Chrome (57+), Firefox (52+), Edge (91+)Interoperability ONVIF Profile S, CGIExternal Interface  Network Interface 2× RJ-45 10/100/1000 Mbps Self-Adaptive EthernetUSB Interface 2× Front USB 2.0, 1× Rear USB 3.0Audio Interface 1-ch RCA Input, 1-ch RCA OutputAlarm In/Out 16 / 4Serial Interface 1× RS232Power 1× AC JackReset Button 1Speaker N/AeSATA 1HDMI 2VGA 1Hard Disk  SATA 4 SATA InterfacesCapacity Up to 16 TB per HDDAlarm  General Alarm Motion Detection, Video Tampering, Scene Change, Line-Crossing, Intrusion, Region Entering/Exiting, Loitering, Object Abandoned/Removed, Vehicle Detection, Human Detection, Abnormal Sound Detection, Smart Frame Note: Requires camera. Anomaly Alarm Video Loss, Offline/IP Conflict, Disk Exception, Login Exception, Fan Exception Note: Requires camera. Alarm Linkage Recording, White Light Alarm, Buzzer, Log, Audible Alarm Note: Requires camera. General  Storage Temperature -40 – 70 °CStorage Humidity 10%–90% RH (Non-Condensing)Working Temperature -10 – 55 °CWorking Humidity 10%–90% RH (Non-Condensing)Dimensions (W×D×H) 440 × 330 × 44 mm (17.32 × 12.99 × 1.73 in)Net Weight 4.0 kgGross Weight 5.0 kgPower Supply 100–240 VAC, 50/60Hz, 1.5AMax. Power Consumption 5.5 W (Without Disk), 45 W (With Disk)Certifications CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIFPackage Contents NVR, Mouse, Installation Guide, Power Cord, HDD Power/Data Cables, Terminal Blocks, Mounting Brackets, Screws, Rubber Feet
