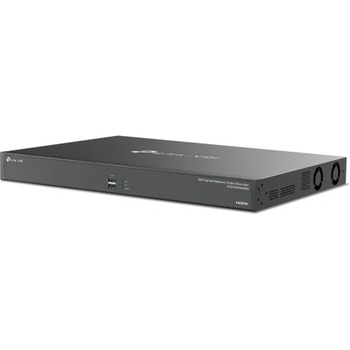

TP-Link IP видеорекордер TP-Link VIGI NVR4064H, 64 канала, H. 265+/H. 265/H. 264+/H. 264, 4x SATA (до 16TB), 1x USB 3.0, 2x USB 2.0, 2x RJ-45 (PoE), 2x HDMI, 1x VGA (VIGI NVR4064H)

TP-Link VIGI NVR4064H

VIGI 64 Channel Network Video Recorder

• 64-Channel Live View and 4K HDMI Video Output
• Up to 16-ch @ 2MP (25fps) / 8-ch @ 4MP (30fps) Decoding Capability
• 16-Channel Synchronous Playback†
• 320 Mbps Incoming Bandwidth and 320 Mbps Outgoing Bandwidth
• 4× SATA Interfaces and 1 Up to 16 TB*
• H. 265+ Compression Technology
• 2 HDMI and 1 VGA Video Output
• Remote Monitoring





Category Feature SpecificationVi deo & Audio IP Video Input 64-Channel  Incoming Bandwidth Default: 260Mbps / Extended: 320Mbps  Outgoing Bandwidth Default: 180Mbps / Extended: 320Mbps  HDMI Output Resolution HDMI1: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60HzHDMI2: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz  VGA Output Resolution 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz  Video Output Mode HDMI1/HDMI2 IndependentHDMI1/VGA IndependentNote: HDMI2 takes precedence over VGA  Multi-View Display 1, 4, 6, 8, 9, 16, 25, 32, 36, 49, 64Decoding Audio Compression G. 711A, G. 711U, G. 726  Video Compression H. 265+, H. 265, H. 264+, H. 264  Record Resolution 8MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF  Synchronous Playback 16-Channel  Capability (25fps) 16-ch@2MP, 32-ch@720P, 64-ch@D1  Capability (30fps) 4-ch@8MP, 6-ch@5MP, 8-ch@4MPRecord Management Record Mode Manual, Scheduled, Motion Detection  Playback Mode Instant, Regular, Tag, Event  Backup Mode Regular, Video Clip  Playback Functions Play, Pause, Stop, Fast Fwd/Back, Frame-by-frame, Full Screen, Clip Export, Digital Zoom, Lock Recording, Audio On/OffNetwork Protocols UPnP, NTP, SMTP, DNS, TCP/IP, UDP, ICMP, HTTP/HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP  Mobile Access Android, iOS  Browser Support Chrome (57+), Firefox (52+), Edge (91+)  Interoperability ONVIF Profile S, CGIExternal Interfaces Network Interface 2× RJ-45 10/100/1000 Mbps  USB Interface 2× USB 2.0 (Front), 1× USB 3.0 (Rear)  Audio Interface 1-ch RCA Input, 1-ch RCA Output  Alarm In/Out 16/4  Serial Interface 1× RS232  Power 1× AC Jack  Reset Button Yes  Speaker N/A  eSATA 1  HDMI Ports 2  VGA Ports 1Hard Disk SATA Interfaces 4  Max Capacity Up to 16 TB per HDDAlarm System General Alarm Motion Detection, Tampering, Scene Change, Line-Crossing, Intrusion, Region Entry/Exit, Loitering, Object Abandonment/Removal, Vehicle & Human Detection, Abnormal Sound, Smart FrameNote: Requires compatible camera  Anomaly Alarm Video Loss, Offline/IP Conflict, Disk/Login/Fan ExceptionNote: Requires compatible camera  Alarm Linkage Recording, White Light Alarm, Buzzer, Log, Audible AlarmNote: Requires compatible cameraGeneral Specs Working Temp -10°C to 55°C  Working Humidity 10%–90% RH Non-Condensing  Storage Temp -40°C to 70°C  Storage Humidity 10%–90% RH Non-Condensing  Dimensions (W×D×H) 440 × 330 × 44 mm (17.32 × 12.99 × 1.73 in)  Net Weight 4.0 kg  Gross Weight 5.0 kg  Power Supply 100–240V AC, 50/60Hz, 1.5A  Max Power Usage 6.95W (No Disk), 48.38W (With Disk)
