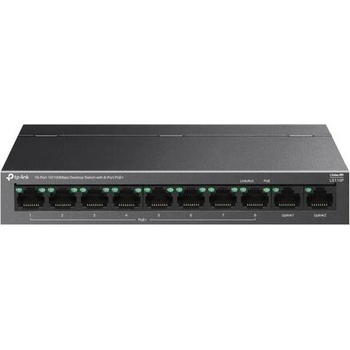

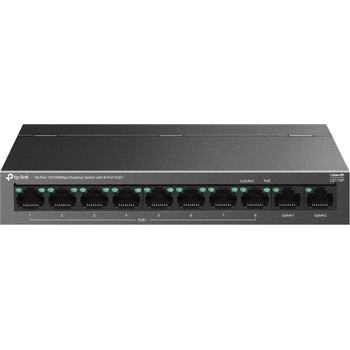

TP-Link LS110P

TP-Link LS110P

10-Port 10/100Mbps Desktop Switch with 8-Port PoE+

• 8× 10/100 Mbps PoE+ ports with up to 30 W PoE output per port
• 2× 10/100 Mbps Non-PoE Ports
• 96 W total PoE budget
• Up to 250 m (820ft) data and power transmitting range under Extend Mode
• Isolation Mode allows one-click client traffic separation for higher security and performance
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Simply plug and play for instant connectivity with no configuration required.
• Fanless design reduces power consumption and ensures silent operation, ideal for noise-sensitive homes or businesses.
• Desktop / Wall-mounting



The LS110P is a 10-Port 10/100Mbps Desktop Switch with 8 ports supporting the PoE+ standard. It offers a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. It provides a total power budget of 96 W*, with up to 30 W per port. It supports up to 250 m (820ft) data and power transmitting range under Extend Mode**. Featured with Isolation Mode & PoE Auto Recovery, LS110P is ideal for surveillance scenario.





HARDWARE FEATURESStandards and Protocols IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3atInterface10*10/100 Mbps RJ45 Ports with 8 PoE+ Ports (Port 1 to Port 8)
AUTO Negotiation/AUTO MDI/MDIXNetwork Media10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX: UTP category 5 or above cable (maximum 100m)Fan Quantity FanlessExternal Power Supply External Power Adapter (Power Input: 220~240V, 50/60Hz (NV), Output: 53.5 VDC / 1.92 A)LED Power, Link/Act, PoE StatusPacket Forwarding Rate 1.488 MppsPoE Ports (RJ45) Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 8
Power Supply: 96 WDimensions ( W x D x H ) 6.7×3.9×1.1 in (171×98×27 mm)Max. Power Consumption 99.6 WMax. Heat Dissipation 338.64 BTU/hPERFORMANCESwitching Capacity 2 GbpsPacket Buffer Memory 768 KBAdvanced FeaturesExtend Mode (Ports 1-8)
Isolation Mode (Ports 1-8)
PoE Auto Recovery (Ports 1-8)Jumbo Frame 2 KBSOFTWARE FEATURESMAC Address Table 2KTransmission Method Store-And-Forward
