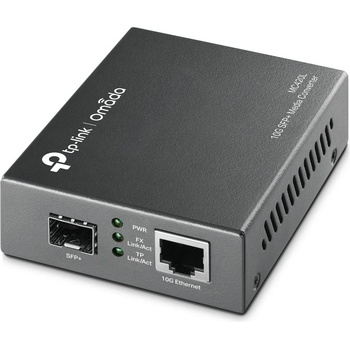

TP-Link Медиа конвертор TP-Link Omada MC420L, 10/100M/1000/10000Mbps Media Converter, 1x 10/100/1000/10000 Mbps RJ45 Port, 1x SFP+ Port (MC420L)

TP-Link Omada MC420L

Omada 10G Multi-Gigabit SFP Media Converter

• 1× 1G/2.5G/5G/10Gbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Complies with IEEE 802.3an,  IEEE 802.3ae, and IEEE 802.3aq
• FX port supports hot-swappable
• Maximum transmission distance depends on the inserting SFP



The MC420L is a media converter designed to convert between 10GBASE-SR/LR fiber,  10GBASE-LRM fiber and 10GBASE-T copper media.  It easily extends the distance of an existing gigabit network via fiber optic when integrated with the SFP Module. The MC420L applies the IEEE 802.3ae 10GBASE-SR/LR 10G Ethernet & IEEE 802.3an 10GBASE-T 10G Ethernet standards as part of its intended use with multi-mode/single-mode SFP Module.  Long-range point-to-point connections are easily built with the gigabit fiber converters, making them ideal for network connections across multiple buildings, for remote surveillance and automated factory equipment.

MC420L offers flexible installation on standalone desktops or inserted into a chassis (TP-Link's MC1400). The easy-to-view front panel status LEDs provide real-time status information to monitor up-to-the-minute network activity. While the maximum transmission distance of fiber optics depends on the insertion of the SFP module.

MEDIA CONVERTER & MODULEStandards and Protocols IEEE 802.3ab, IEEE 802.3an, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x
 Basic FunctionAuto-negotiation of Half-Duplex / Full-Duplex transfer mode
Maximum transmission distance depends on the inserting SFP moduleInterface1× SFP+ port
1× 1G/2.5G/5G/10Gbps RJ45 port
 Wave Length Depends on the used SFP moduleNetwork Media 10GBASE-R Multi-mode/Single-mode SFP+ moduleNetwork Media 10GBASE-T 1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat. 5e or above (max. 100m);
10GBASE-T: UTP cat. 6(max. 55m), STP Cat. 6 or above(max. 100m)Dimensions ( W x D x H ) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)Power Supply External Power Adapter
 Max. Power Consumption 4.12WLED PWR, Link/Act
 Safety & Emission UL, RoHS
