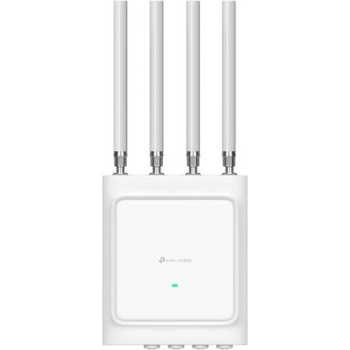

TP-Link Omada EAP668-Outdoor

EAP668-Outdoor HD

AX3600 Indoor/Outdoor WiFi 6 Access Point

• High-Density Connectivity: Supports up to 1,024 devices.

• Ideal for Outdoor Environments: IP68-rated weatherproof enclosure, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C.

• High-gain Detachable Antennas: 4× External N-Type Omni Antennas, 6 dBi Dual-Band (Antennas Included).

• Ultra-Fast 3.6 Gbps Wi-Fi 6 Speeds: 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz.

• Multiple Ports for Flexible Network Solutions: 1× 10G SFP+ slot, 1× 2.5G PoE-In Port, and 1× Gigabit PoE-Out port.

• PoE+/PoE++  Powered and PoE+ Out: Supports 802.3at/bt PoE input and 802.3at PoE output.

• Advanced Features: Omada Mesh, Seamless Roaming, Bluetooth, and Centralized Cloud Management.





Specification DetailsInterface 1× 2.5G Ethernet Port, 1× Gigabit Ethernet Port, 1× 10G SFP+Button ResetPower Supply 802.3at / 802.3bt PoEMax. Power Consumption 802.3bt: EU: 20.2W (bt type3: af PSE out; bt type4: at PSE out), US: 25.4W (bt type3: af PSE out; bt type4: at PSE out). 802.3at: EU: 20.2W (PSE disabled), US: 25.4W (PSE disabled). Note: PoE-out power not included. PoE-out requires 802.3bt input. Dimensions (W × D × H) 9.5 × 3.2 × 12.3 in (240 × 80 × 312 mm), excluding antennas, waterproofing kit, and mounting kitAntenna 4× External Dual-Band Omni Antennas; 2.4 GHz: 6.0 dBi; 5 GHz: 6.0 dBiBluetooth YesWeatherproof Enclosure IP68Mounting Wall/Pole mounting kits included; Horizontal ±45° adjustment. Optional APM-110 bracket: Vertical ±90°, Horizontal ±45°. Optional APM-100 bracket: Vertical ±45°, Horizontal ±45°. (Optional brackets sold separately)Concurrent Clients 1,000+Wireless Standards IEEE 802.11 a/b/g/n/ac/axFrequency Bands 2.4 GHz and 5 GHzSignal Rate 5 GHz: up to 2402 Mbps; 2.4 GHz: up to 1148 MbpsWireless Functions 1024-QAM, Mesh, Seamless Roaming (802.11k/v/r), Enable/Disable Radio, Enable/Disable SSID Broadcast, Guest Network, Automatic Channel Assignment (dBm power adjustment), Transmit Power Control, Load Balance, Band Steering, Beamforming, Airtime Fairness, Multiple SSIDs (16 total, 8 per band), 4×4 MU-MIMO DL/UL, UL/DL OFDMA, Wireless Statistics, Wireless Schedule, Reboot Schedule, RADIUS Accounting, MAC Authentication, Static IP / Dynamic IPWireless Security VLAN, Access Control, Rogue AP Detection, Captive Portal Authentication, MAC Filter (up to 4,000), Wireless Client Isolation, WPA/WPA2/WPA3 Personal & EnterpriseTransmission Power CE:
