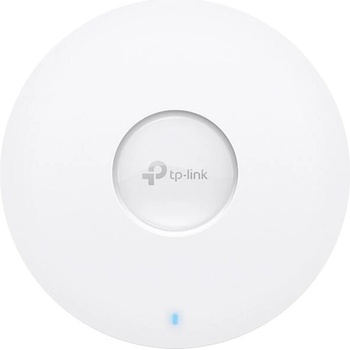

TP-Link Omada EAP673

AX5400 WiFi 6 Speed
4804 Mbps on 5 GHz + 574 Mbps on 2.4 GHz


High-Efficiency WiFi 6
More connected devices can enjoy faster speeds


Centralized Cloud Management
Manage the whole network locally or from the cloud


2.5GE Wired Performance
Boosts overall throughput with a 2.5 Gbps Ethernet port


160 MHz Channel
Double the data at peak transmission times on a single stream with HE160‡


Auto Channel Selection and Power Adjustment*
Optimize overall performance by reducing WiFi interference


Omada Mesh Technology
More flexible and convenient wireless deployment§


Seamless Roaming
Uninterrupted streaming when moving between APs§


PoE+ Powered
Supports both DC (adapter not included) and 802.3at PoE+ for flexible installations


Hospitality

High-quality and full coverage Guest WiFi

Education

High-security WiFi to connect more devices

Shopping Mall

Seamless marketing WiFi coverage to boost business

Meeting Room

Faster streaming, downloading, video conferencing, and more

Office

Stable, seamless, and high-security WiFi coverage

Higher Efficiency for More Devices

Wi-Fi 6 features such as OFDMA and MU-MIMO handle multiple clients across congested environments like typical office spaces, lodging, and hospitals. Enjoy faster speeds on more devices with less lag. ‡  Enjoy faster speeds on more devices with less lag.

Easy Deployment & Higher Performance by Omada Mesh§

Easy Pairing, Less Wiring

With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.

Boosted Network Security and Efficiency

Security

• Secure Guest Network with Up to 16 SSIDs

  Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.

• Boost Business with SMS Login

  Captive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page. §

• WPA3 for Worry-Free Open Public Networks

  With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.

Eff iciency

• Band Steering

  Automatically moves dual band devices onto the wider 5GHz band for faster connections.

• Load Balance

  Ensures large numbers of users have smooth network experiences in high-density business networks

• Airtime Fairness

  Increases average network throughput in heavily congested environments

Specifications

Interface

1× 2.5 Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)

Button

Reset

Power

802.3at PoE
12 V / 2 A DC (Power adapter not included)

Energy consumption

EU: 20.8 W
US: 22.3 W

Dimensions (W x D x H )

(220 × 220 × 32.5 mm)

Antenna type

Internal Omni
2.4 GHz: 2× 4 dBi
5 GHz: 4× 5 dBi

Bluetooth

Yes

WIRELESS FEATURES
Coverage

140㎡(1500 ft2)***

Wireless Client Capacity

250+**

Concurrent Clients

250+**

Wire less standards
IEEE 802.11ax/ac/n/g/b/a

Frequency

2.4 GHz and 5 GHz

Signal speed

5 GHz: Up to 4804 Mbps
2.4 GHz: Up to 574 Mbps

Wireless Features

1024-QAM
4× Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
HE160 (160 MHz Bandwidth)‡
Seamless Roaming §
Omada Mesh§
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client

Wireless Security

Captive Portal Authentication§
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

Transmission power

CE:
