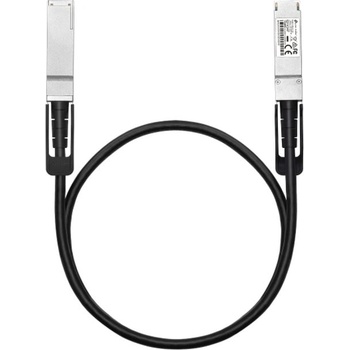

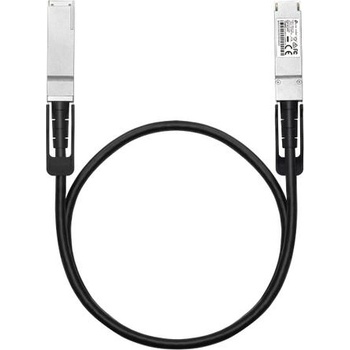

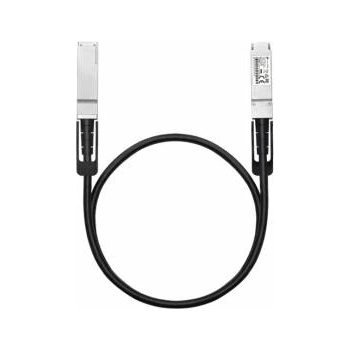

TP-Link Omada SM9220-1M

TP-Link Omada SM9220-1M



Omada 1 Meter 100G QSFP28 Direct Attach Cable

• 100 Gbps data transmission

• QSFP28 connector on both sides

• Up to 1 m transmission distance

• Wide operating temperature

• Hot Swappable

SM9220-1M is a passive Direct Attach Cable. With a passive Twinax cable assembly of 1 meter and two QSFP28 connectors on each side, SM9220-1M is suitable for short distance transmission of extreme-high speed data (100 Gbps) and offers a cost-effective way to connect within racks and across adjacent racks.

GENERALProduct DimensionsPlug: 2.85*0.72*0.53 in (72.45*18.35*13.50 mm);
Overall length: 39.37 in (1,000 mm)SFP28 CableEnvironmentOperating Temperature: 0–70 ℃ (32–158 ℉)
Storage Temperature: -40–85 ℃ (-40–185 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensingData Rate 100 Gbps / 40 GbpsConductor Silver Plated CopperWire Gauge 30AWGMin. Bend Radius 33 mmMax. Cable Length 1 m
