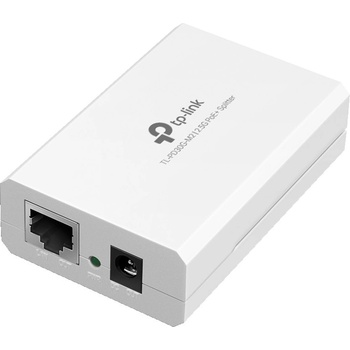

TP-Link PoE сплитер TP-Link TL-PD30G-M2, 10/100/1000/2500Mbps, IEEE802.3af/IEEE802.3at, 12V (TL-PD30G-M2)

TP-Link TL-PD30G-M2



2.5G PoE+ Splitter

• IEEE802.3af/at compliant
• Selectable power output
• Plug-and-Play, requires no configuration



2.5G Super-fast Speeds without Changing Cables

This splitter delivers 2.5 times faster network performance than traditional Gigabit switches. It works with CAT5e, CAT6, CAT6a and above cables without upgrading your cabling.





Power over Ethernet, Flexible Network Deployment

Work with all lEEE 802.3af/at compliant PoE+ switches or injectors to deliver optional 12V/9V/5V DC triple output to a variety of Ethernet-enabled devices.





ХАРДУЕРНИ ХАРАКТЕРИСТИКИИнтерф ейс 1 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 POWER+DATA IN Port
1 10M/100M/1000M/2.5Gbps Auto-Negotiation RJ45 LAN OUT Port
1 12V / 9V / 5V DC OUT Power Output PortМрежова медия 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5e, 6 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
2.5GBASE-T: UTP category 5e, 6 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)Захранване 12VDC 2A, 9VDC 2A, 5VDC 2AБазови функции Compatible with IEEE 802.3af/at compliant PSEs
Delivers power up to 100 meters
Optional 12VDC, 9VDC or 5VDC power supplyLED ON: Connected to PSE correctly
Off: No PSE is connectedРазмери (Ш x Д x В ) 3.2*2.1*0.9 in (80.8*54*24 mm)СОФТУЕРНИ ХАРАКТЕРИСТИКИБазови функции Compatible with IEEE 802.3af/at compliant PSEs
Delivers power up to 100 meters
Optional 12VDC, 9VDC or 5VDC power supplyДРУГИСертификати FCC, CE, RoHSСистемни изисквания Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
