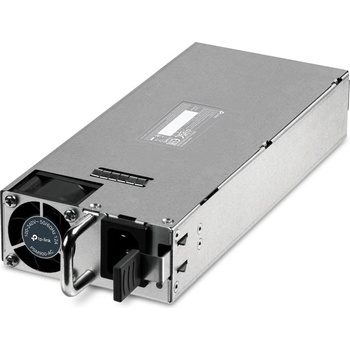

TP-Link PSM900

TP-Link Omada PSM900-AC

900W AC Power Supply Module

The TP-Link Power Supply Module PSM900-AC is an AC-input and DC-output power supply module. It can convert the input voltage to 53.5 Volts with a maximum output power of 900 Watts. The power supply module is fully hot-swappable, helping to ensure no system interruption during installation or replacement. The TP-Link Power Supply Module is applicable to multiple TP-Link Omada and TP-Link Omada Pro switch models, such as SG6428XHP, SG6654XHP, S6500-24GP4XF, 6500-48GP6XF, S6500-24MPP4Y, and S6500-48MPP6Y.

• Up to 900 watts output power
• Hot swappable
• 53.5 V DC output voltage
• Output over-voltage/under-voltage/short circuit/over-current protection
• Suitable for SG6428XHP, SG6654XHP, S6500-24GP4XF, S6500-48GP6XF, S6500-24MPP4Y, S6500-48MPP6Y

HARDWARE FEATURESLED Multi-function indicationRedundant Power SupplyAC Power Supply100-120V(include)~ 50/60Hz 12A (for
locations using low voltage)
120(not include)-240V~ 50/60Hz 10A (for
other locations)DC Power Output 53.5 V/16.5 ASurge Protection ±6 kVDimensions ( W x D x H ) 259.5*95.8*40.1 mmMax. Power Output 900WEnvironmentOperating Temperature: 0˚C–45˚C (32˚F to 113˚F)
Storage Temperature: -40℃–70℃ (-40℉~158℉)
Operating Humidity: 10%–90% RH, Non-condensing
Storage Humidity: 5%–90% RH, Non-condensing
