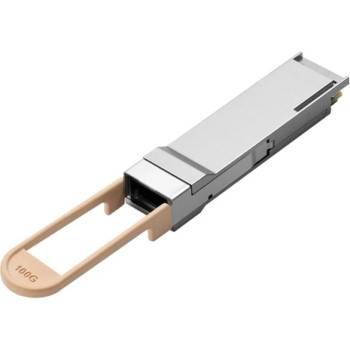

TP-Link QSFP28 оптичен модул TP-Link Omada SM9110-SR4, 100m, 100G/40G (SM9110-SR4)

SM9110-SR4

Omada 100GBASE-SR4 QSFP28 Transceiver

• 100GBASE-SR4 multi-mode QSFP28 Transceiver
• Supports Digital Diagnostic Monitoring (DDM)
• Up to 100 m transmission distance
• Hot-Pluggable with maximum flexibility
• Wide operating temperature
• Compatible with 100G/40G Quad Small Form-Factor Pluggable 28 (QSFP28)

CategoryDetailsForm Factor QSFP28Standards and ProtocolsIEEE 802.3bm, IEEE 802.3ba, QSFP28 MSA SFF-8665, SFF-8636, SFF-8436 CPRI, eCPRI TCP/IPWave Length 850 nmPower Supply 3.3 VMax. Power ConsumptionMax 1.8 W at 100 Gbps Max 1.54 W at 40 GbpsFiber Type 50/125 m MMF (Multimode)Max. Cable Length70 m (OM3), 100 m (OM4) @103.125 Gbps (4x 25.78 Gbps) 100 m (OM3), 150 m (OM4) @41.2 Gbps (4x 10.3 Gbps)Data Rate Dual Rate: 103.125 Gbps and 41.2 GbpsConnector MTP/MPO-12Предавателн а мощност (Tx Power)-8.4 dBm to 2.4 dBm @103.125 Gbps -7.6 dBm to 2.4 dBm @41.2 GbpsTransmitter Type VCSEL 850 nmReceiver Type PINReceiver Sensitivity< -10.3 dBm @103.125 Gbps < -9.5 dBm @41.2 GbpsReceiver Overload > 2.4 dBm @103.125 Gbps / > 2.4 dBm @41.2 GbpsExtinction Ratio> 2 dB @103.125 Gbps > 3 dB @41.2 GbpsRegulatory Compliance CE, FCC, RoHSDDM (Digital Diagnostics Monitoring) YesQSFP28 MSA YesHot Swappable YesDimensions (W × D × H) 4.88 × 0.72 × 0.46 in (124 × 18.35 × 11.7 mm)
